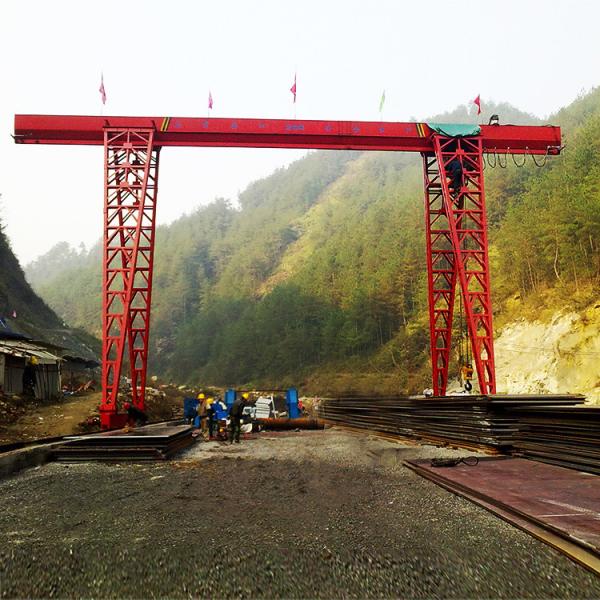

16T Truss Type Electric Hoist Single Beam Gantry Crane Wind Resistance

product description of Single girder gantry crane:

Truss type gantry crane is light in weight and small in wind load. It is widely used in outdoor places such as railway stations, ports, industrial and mining enterprises.
Powerful functions, especially suitable for small and medium-sized workplaces. According to the number of upper main beams, the lattice gantry crane can be divided into single beam and double beam. Single-beam crane trolleys usually use electric hoists, which are simple in structure, light in weight, easy to manufacture and easy to install. These are low speed, low load types. The structure of the triangular cross-section double-beam gantry crane is evolved from four truss structures. It is not only simple in structure, but also light in weight. It is suitable for medium and small lifting weights and medium working speeds and ranges.

Technical Parameter(customizable) of Single girder gantry crane:

Main Features of Single girder gantry crane:

Light weight
Small windward area
Large carrying capacity
Simple structure
Easy to make
Easy to install

Specification of Single girder gantry crane:

Lifting capacity is 5ton to 20ton;

Span is 12m to 30m;

Lifting height is 6m, 9m, 12m, etc;

Working duty is A5;

Working temperature is -20°C to + 40°C.

Detailed Images of Single girder gantry crane:

FAQ

A: Can you provide custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
