20T MG Pendant Control Double Girder Gantry Crane Electric Trolley

    Buy cheap 20T MG Pendant Control Double Girder Gantry Crane Electric Trolley from wholesalers

    Buy cheap 20T MG Pendant Control Double Girder Gantry Crane Electric Trolley from wholesalers
    • Buy cheap 20T MG Pendant Control Double Girder Gantry Crane Electric Trolley from wholesalers
    • Buy cheap 20T MG Pendant Control Double Girder Gantry Crane Electric Trolley from wholesalers

    20T MG Pendant Control Double Girder Gantry Crane Electric Trolley

    Ask Lasest Price
    Brand Name : Kuangyuan
    Model Number : MG
    Certification : CEI,SO
    • Product Details
    • Company Profile

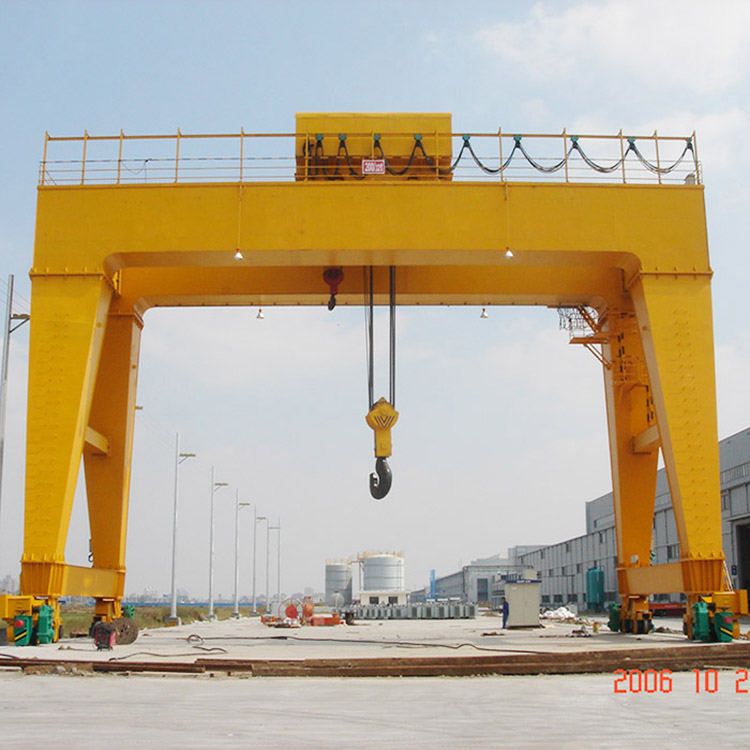

    20T MG Pendant Control Double Girder Gantry Crane Electric Trolley

    20T MG S15m Kuangyuan Brand Gantry Crane ISO CE Electric Trolley

    Product Description of Gantry Crane:

    Rail Mounted Container Gantry Crane(RMG) is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.


    Product Details:

    Main Parts of Rail Mounted Container Gantry Crane:


    Product Structure:
    Lifting weight (t)101620/1032/1036/1650/10
    Span (m)18~3518~3018~35222622~3535

    Lifting height (m)


    Main hook11.510.5,1210.511.511.512
    Auxiliary hook11121213
    Speed (m/min)Main hook8.57.97.27.57.86
    Auxiliary hook10.410.410.510.4
    Trolley travel43.844.544.541.941.938.13
    Long travel37.6,4038,3638,364040,3838
    Duty classificationA5
    Power sourceThree-phase AC. 127~480V 50/60Hz

    Attention:

    Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

    Related Products

    Main Product:

    Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.

    Certifications:
    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

    Contact us:

    Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.
