5~50/10t QD type double girder electric mobile hook bridge crane for general industry

Product Description :
Hook bridge crane is a general bridge crane which is widely used in the lifting machinery.Its lifting capacity is from 5tons to 450/80tons,and its working duty is A3~A8 according to the frequency of usage.It is suitable for loading, unloading and hoisting work in factories, warehouses and freight yards where the ambient temperature is -20℃～40℃ and the relative humidity is not more than 85%. It is forbidden to work in the environment of flammable, explosive and corrosive gas.(Application)

Configuration:

QD type hook crane is mainly composed of a box-shaped bridge,a trolley traveling mechanism, a crane traveling mechanism and an electrical control system. The lifting mechanism is a hook.

Track is laid on the main beam for the trolley to move laterally along the direction of the main beam. The main girder is welded with the box-shaped end girder, and the end girder is arranged with joints, bolts or pin connections for the crane to be disassembled and transported.

The control method has three ways mainly: pendant line button control, wireless remote control and aerial cabin control, generally standard way is cabin control.

There are two types of cabin : open and closed, with adjustable seats, insulating pads on the bottom plate, and tempered glass for window glass. Air conditioners, sounders, walkie-talkies and other items can be configured according to users’ requirements.

Technical Parameter(customizable) :

Generally, QD type double girder hook bridge crane includes two models:QD type normal speed hook bridge crane and QD type slow speed hook bridge crane.

Noraml speed:

Slow speed:

Sketch:

Slow speed one 5~10tons QD type:

Slow speed one 16/3.2~50/10tons QD type crane & normal speed one 5~50/10tons QD type crane:

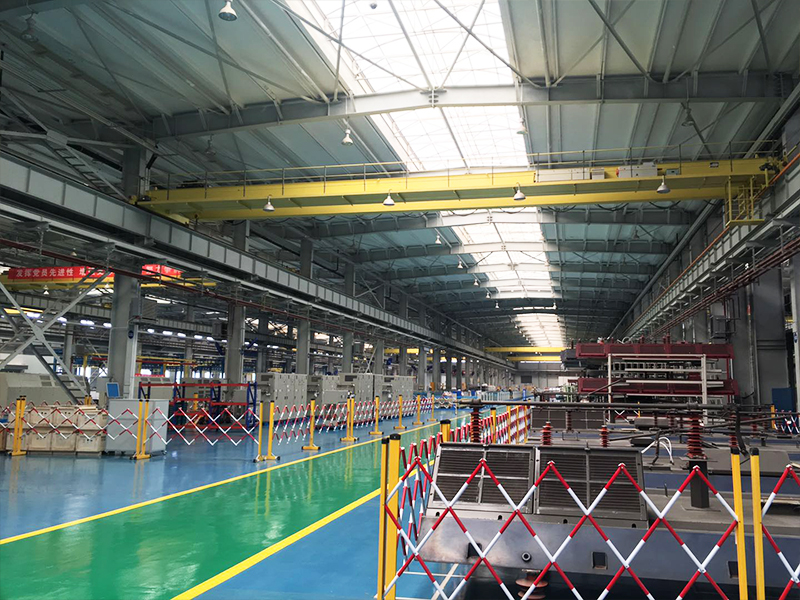

Photos for reference:

Main Product

Henan Mine Crane Co., Ltd. was established in 2002. The company has a registered capital of 1.177 billion yuan, a construction area of 1.62 million square meters, more than 4,500 employees, and more than 3,500 sets of advanced processing equipment. ). Specializing in the research and development, production, sales and service of more than 110 types of cranes and accessories in three series of "KUANGYUAN" brand bridge cranes, gantry cranes and electric hoists. As a professional crane and material handling product manufacturer and service provider, it can provide customers with overall solutions and full life cycle services, and is committed to the intelligent, green and high-quality development of the crane industry.

Certifications
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

FAQ of EOT Double Girder Overhead Crane
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
