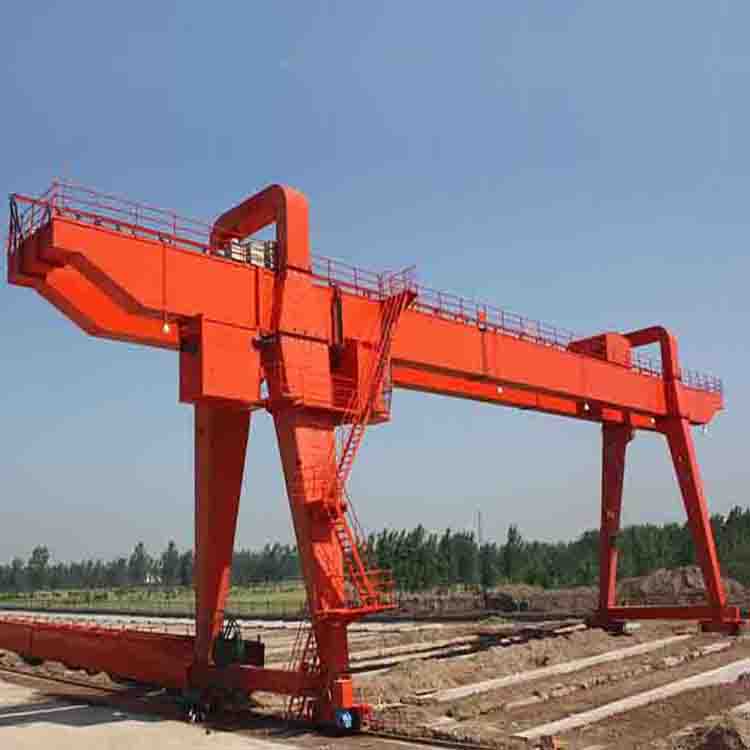

250T MG Model A Frame Double Beam Gantry Crane With Cantilever

Advantages:

1.Higher hook lift, since the hook can be pulled up between the main girders.
2.Extremely rigid box girder construction and durable trolley design are well suited for heavy service 3.applications.
4.Economical material handling in those area where overhead crane system is not easily available
5.Safe and efficient
6.Easy installation and maintenance

Features:

1.Weight overload protection devices
2.Emergency stop system
3.Hooks with latch
4.High quality rubber buffers
5.Protective earthing
6.Crane switch and travel end switch
7.Current overload protection function

Product Details:

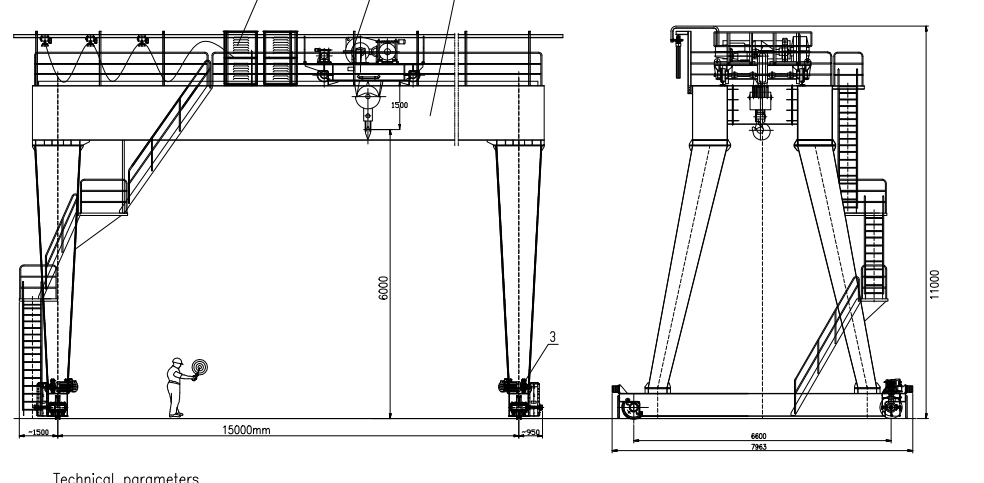

1. The box-shape gantry is made of well-chosen steel and processed by advanced technology, so the gantry is of high intensity, rigidity, toughness and long life. On the gantry are laid the rails for cross travel and electrical cabinet. Cantilevers can be added for wider work range.
2. The trolley is comprised of motors for lifting and travelling, brake, reducer, coiling block and electric power transmission device. Weather enclosure is set up to protect the inside components from wastage because of weather. The trolley traverses along the rails laid on the gantry for cross travel.
3. Electric parts adopt international brand Schneider and Siemens to ensure accurate operation, excellent performance and convenient maintenance.
4. There are two control methods for choice, namely cabin control and ground control.

Hi, firstly let us introduce our company as follows:

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
