    Remote QD Type Cabin 50t A5 Span10.5-31.5 Bridge Overhead Crane

    Ask Lasest Price
    Brand Name : Kuangshan
    Model Number : LD
    Certification : CE,ISO
    Price :
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 100000sets/month
    Delivery Time : 30work days
    • Product Details
    • Company Profile

    Remote QD Type Cabin 50t A5 Span10.5-31.5 Bridge Overhead Crane

     Remote QD Type Cabin 50t A5 Span10.5-31.5 Bridge Overhead Crane

    Remote QD Type Cabin 50t Bridge Overhead Crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
    There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

    Technological parameter:
    MechanismItemUnitResult
    Item
    Lifting capacityton50
    Lifting heightm1-20
    Spanm10.5-31.5
    Working environment temperture°C-25~40
    SpeedHoistingMainm/min0.84-9.5
    Aux.5.22-12.6
    crab5.8-38.4
    trolley17.7-78
    Working systemA5

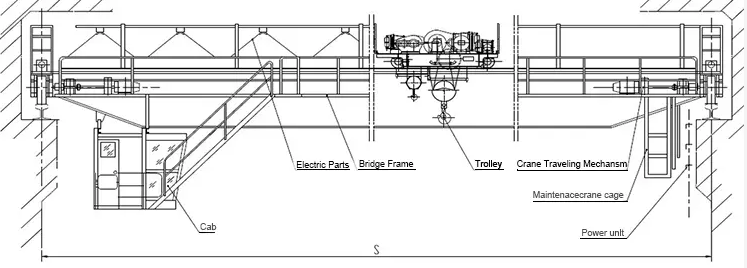

    Sketch:


    Potho:


    Attention:

    Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).


    Certifications:
    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

    FAQ:

    Q1.What do Henan mine crane do?

    A: We design,manufacture,install overhead crane ,granty crane, port ciane,hoist mwinch and provide customer lifting solutions.

    Q2.Do you provide professional crane servicing?

    A: Yes and our service team offer a range of professional services to installation and your crane.

    Q3.What do I need to consid when purchasing from you?

    A:Standard items to conside when purchaing any lifting equipment such as over as overhesd crane and gantry crane or hoist ,it including safe working load ,span and lifting height, duty cycles and cost of spare parts.

    Q4.What makes you different from other manufacturers?

    A: We have trained service technicians who will be able to get your material handing equipment up and running ,and have been providing our customer's an effective solution.

    Q5.What areas do yo serves?

    A: We maily service in china and can send engineers provided installations and maintenancein all over the world.
