3 Ton Traveling Speed 20m/Min Electric Single Beam Crane
Product Introduction:

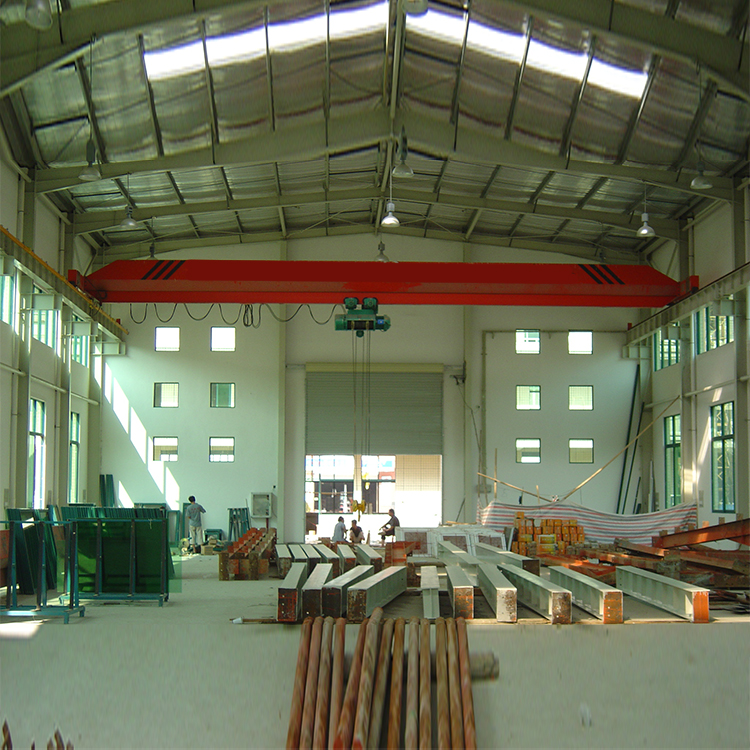

3 Ton Overhead Crane With Single Girder is composed of girder weld
by steel plate andI-beam ,end girder, electric hoist and travelling
mechanism. The electric hoist runs along the lower flange of the
I-beam of the girder to accomplish article hoisting. It features
light structure and easy installation and maintenance.
It's prohibited to work in environment with combustible, explosive
or corrosive media. If you need the Single Beam Overhead Travelling
Crane suitable for these special occasions, contact us for
customization.
The basic parameter of our 3 Ton Overhead Crane With Single Girder:
| Crane Travelling Mechanism | Working speed(m/min) | (Ground control)20 | (Ground control)30 | (Cabin control) |
| Speed ratio | 58.78 | 39.38 | 26.36 |
| Motor | type | YSE80L-4 | YSE90L-4 | ZDR100-4 |
| power(kw) | 2*0.8 | 2*1.5 | 2*1.5 |
| rotational speed(m/min) | 1380
5 |
| Lifting Machanism(electric hoist)&electric hoist travelling
mechanism | Model of electric hoist | MD1 model | CD1 model |
| Lifting speed(m/min) | 8/0.8(7/0.7) | 8(7) |
| Hoisting height(m) | 6/9/12/18/24/30 |
| Traveling speed(m/min) | 20 |
| Motor | Cone squirre-cage model |
| Working class | A3 |
| Electric current | 3-phrase 50HZ 380V |
| Wheel diameter | Φ270 |
| Width of trail | 37-70mm |
3 Ton Overhead Crane With Single Girder is often designed into a single girder type. This kind of overhead
bridge crane has a small size and lightweight. An overhead crane
consists of the bridge, lifting mechanism, traveling mechanism, and
electrical parts, etc. Every part from our company employs advanced
technology and durable material. This makes sure the high quality
and long service life of our products. Moreover, we adopt a
reliable safety protection system to avoid any harm of workers,
such as emergency power off, short circuit protection, and overload
limiter, etc. If you want to get in touch with small crane
supplier, please email us.
Main Features of our 3 Ton Overhead Crane With Single Girder:
1). Single welding box girder
2). DIN/FEM standard deflection
3). Whole length CNC cutting for complete web plate, high
deflection accuracy
4). High quality automatic welding and NDT inspection
5). Shot-blasting Sa2.5 for complete girder after welding, stress
release
6). High tension bolts mounting between girder and legs, life time
safety connection
7). Compacted gear motor driving, stepless control, harden gear,
safety disc brake IP55
8). High protection class IP55, F class, 40% ED
9). Excellent driving properties, stepless control, smoothly moving
10). All hoist and crane movements are independent and can be run
simultaneously.
Packaging &Shipping Details:
1.Hoist and electric parts will be packed by plywood crate, for
avoiding the demage from goods crash and impact during the
delivery.
2. Girders and other main parts will be packed by plastic woven
cloth, for preventing rust from soppy condition during the
transportation.
3. Only the best transport solution will be taken for saving your
cost uttermost on finance, security and time.
FAQ:
Q1. What do Henan mine crane do ?
A:We design, manufacture, install overhead crane, gantry crane,
port crane, hoists, winch and provide customer lifting solutions.
Q2. Do you provide professional crane servicing ?
A:Yes and our service team offer a range of professional services
to installation and maintain your crane.
Q3. What do I need to consider when purchasing from you ?
A: Standard items to consider when purchasing any lifting equipment
such as overhead crane and gantry crane or hoist, it including safe
working load, span and lifting height, duty cycles and on-going
cost of spare parts.
Q4. What makes you different from other manufacturers ?
A:We have trained service technicians who will be able to get your
material handling equipment up and running, and have been providing
our customers an effective service solution.
Q5. What areas do you service ?
A:We can send engineers provided installations and maintenance in
all over the world.
