    Ladle Lifting Overhead Crane 5tons~74tons for steel mill workshop

    Ask Lasest Price
    Brand Name : KUANGYUAN
    Model Number : QDY
    Certification : GOST CE ISO
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 5000 set/sets per year
    Delivery Time : 90days
    Price : Negotiable
    • Product Details
    • Company Profile

    Ladle Lifting Overhead Crane 5tons~74tons for steel mill workshop

    Ladle Lifting Overhead Crane 5tons~74tons for steel mill workshop


    Product introduction of Ladle Lifting Overhead Crane 5tons~74tons for steel mill workshop:

    Casting Crane is one of the main equipments in the continuous casting technology of steelmaking. It is mainly used for pouring melted iron from additive bay of converter to converter; lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous casting machine.

    The overall structure of foundry crane has the following forms: two girders and two rail, four girders and four rails, and four girder and six rail, etc. The form of two girder and two rail, four girder and four rail, are mainly used for middle and large-tonnage foundry crane; the form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage foundry crane.


    Technical parameters sheet of Ladle Lifting Overhead Crane 5tons~74tons for steel mill workshop:

    Lifting weight(t)51016/3.220/532/550/1074/20
    Span(m)10.5~31.5
    Max Lifting height(m)1616Main hook1612161222
    Aux.hook1814181624
    Working classA7

    Speed

    (m/min)

    Hoisting15.510.4Main hook10.79.87.87.86.1
    Aux.hook14.615.515.510.49.7

    Traveling

    of crab

    37.243.844.644.642.433.8

    Traveling

    of trolley

    92.792. 77676897567.3

    Motor

    (type/kw)

    Hoisting1522Main hook3745557590
    Aux.hook1115152237

    Traveling

    of crab

    1.52.23.73.77.51115

    Traveling

    of crane

    2*5.5

    2*7.5

    2*5.5

    2*7.5

    2*7.5,2*11

    2*7.5,

    2*11

    2*11

    2*11,

    2*15

    2*22
    Steel tracktrolley18kg/m24kg/m43kg/m
    crane43kg/m43kg/m or QU70QU70QU80QU100
    Power source3Ph A.C 50Hz 380V

    Main features of Ladle Lifting Overhead Crane 5tons~74tons for steel mill workshop
    1. Heavy duty double beam overhead steel millcrane .

    2. Special used in steel plant.
    3. Smooth starting and stopping.
    4. Safe and reliable traveling, long service life.
    5. Heat-resistant electrical equipment and wiring.

    6. Motor protection class IP54, H class insulation

    7. High quality with competitive price.

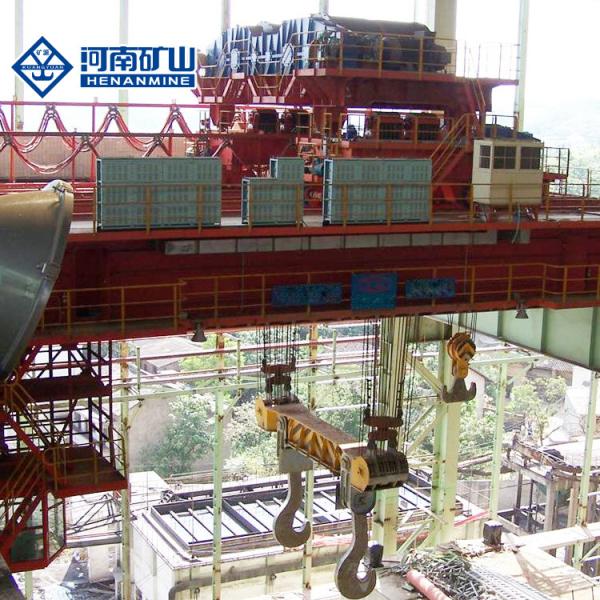

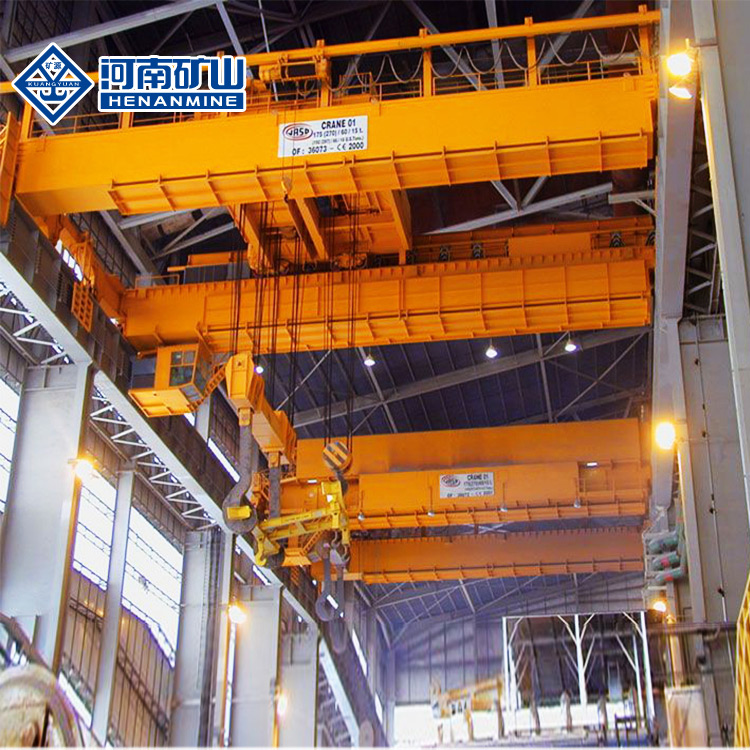

    Photo:

    Certification:

    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environmentand ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
