8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist

    Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers

    Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers
    • Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers
    • Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers
    • Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers
    • Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers
    • Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers
    • Buy cheap 8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist from wholesalers

    8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist

    Ask Lasest Price
    Brand Name : KuangYuan
    Model Number : Electric Hoist
    Certification : CE ISO SGS GOST
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30000 sets per year
    Delivery Time : 35days
    • Product Details
    • Company Profile

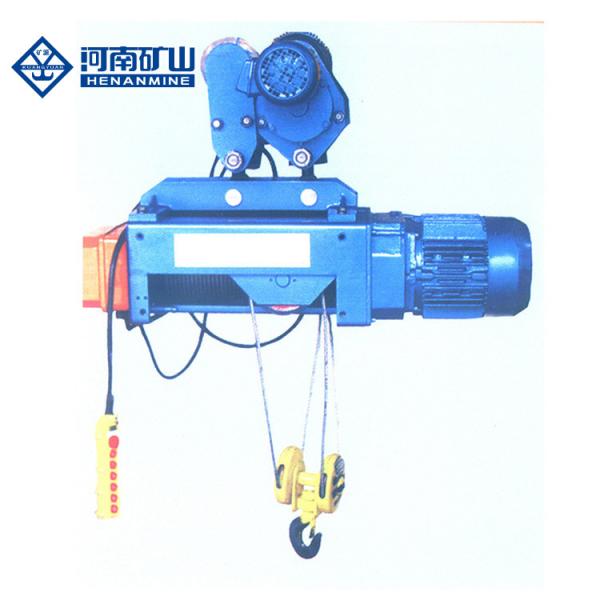

    8m / Min Mini Electric Hoist 100kg , Drywall Panel Electric Crane Hoist

    CD MD Mini Electric Hoist 100kg Electric Hoist Wire Rope Electric Hoist For Sale


    Product Description


    CD MD Model electric wire rope hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.


    Product Details



    Main Features


    1. Design: International advanced tide compact and nice.
    2. Reduce: High strength hard gear surface, inclined gear driving with low noise.
    3. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
    4. Wire Rope: The tensile strength is 1760N/mm2.
    5. Limit Switch: Cam limit model operate safety.

    6. Working duty: A5/M5

    7. Speed: with Frequency inverter

    8. Main electrical parts: Schneider

    9. Motor brand: China or Germany.

    Product Structure


    ModelCD1
    CapacityTons0.250.51235101620
    Hoisting heightm3,6,96,9,12,18,24,309,12,18,24,309,12,18
    Hoisting speedm/min873.54
    Travel speedm/min2020/3020
    Wire ropeDia.(mm)3.64.87.711131517.519.5
    Spec.6 x196x37+FC

    Hoisting

    motor

    TypeTypeZD112-4ZD121-4ZD122-4ZD131-4ZD132-4ZD141-4ZD151-4ZD152-4
    PowerPower(kW)0.40.81.534.57.51318.5

    Rotation

    speed

    Rotation

    speed(r/min)

    1380
    Current(A)1.252.44.37.611183041.7

    Travel

    motor

    TypeTypeZDY110-4ZDY111-4ZDY112-4ZDY121-4
    PowerPower(kW)0.060.20.40.80.8x2

    Rotation

    speed

    Rotation

    speed(r/min)

    14001380
    CurrentCurrent(A)0.30.721.252.44.3

    Main Product


    Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.


    Company Information



    Certifications


    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
