Heavy Duty 5~16Tons Industrial Double Beam Electromagnet Lifting Bridge Crane

Product description of Double Beam Electromagnet Lifting Bridge Crane:

Double beam electromagnet lifting bridge crane is a specialized crane for lifting and moving steel products,i.e steel plates,rebar bundle,steel billet,steel coil and steel pipes. This crane is constituted by main beam girder,crane traveling mechanisms, lifting trolley, cabin and electric control system and electromagnet and spreader. The electromagnetic suction force can last 10/15/20/30minutes after power off. And the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted.

The working class of this bridge crane is A6 or A7

There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).

Technical Parameter Sheet:

Main features:
1. High quality steel Q235B and Q345B material;

2. Connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, strong bearing capacity;
5. Compact reducer motor drive, stepless control, hardened gears and hydraulic brake;
6. Good operation performance, stepless speed regulating and running smoothly.

Product Details:

Main Features:

1. Three kind entrances to the cab: end, side and top entrances;

2. The rotating part of hook must be locked by screws during electromagnetic plate working;

3. Its lifting capacity includes the weight of electromagnetic part, and the weight of whole crane does not include the weight of electromagnetic chuck and its components;

4. Box-typed girder structure is welded in high strength by robots;

5. Wheels, winding drums, gears and couplings are manufactured by CNC with best quality;

6. Heavy-duty slip ring motor from Wuxi NGP;

7. Electrical parts are of Schneider or Siemens

8. Independent control system: wireless control or cab control;

9. Lifting overload protection device;

10. Polyurethane buffer;

11. Crane travel limit switch;

12. Decompression protection;

13. Emergency shutdown device;

14. Current overload protector.

Sketch Drawing:

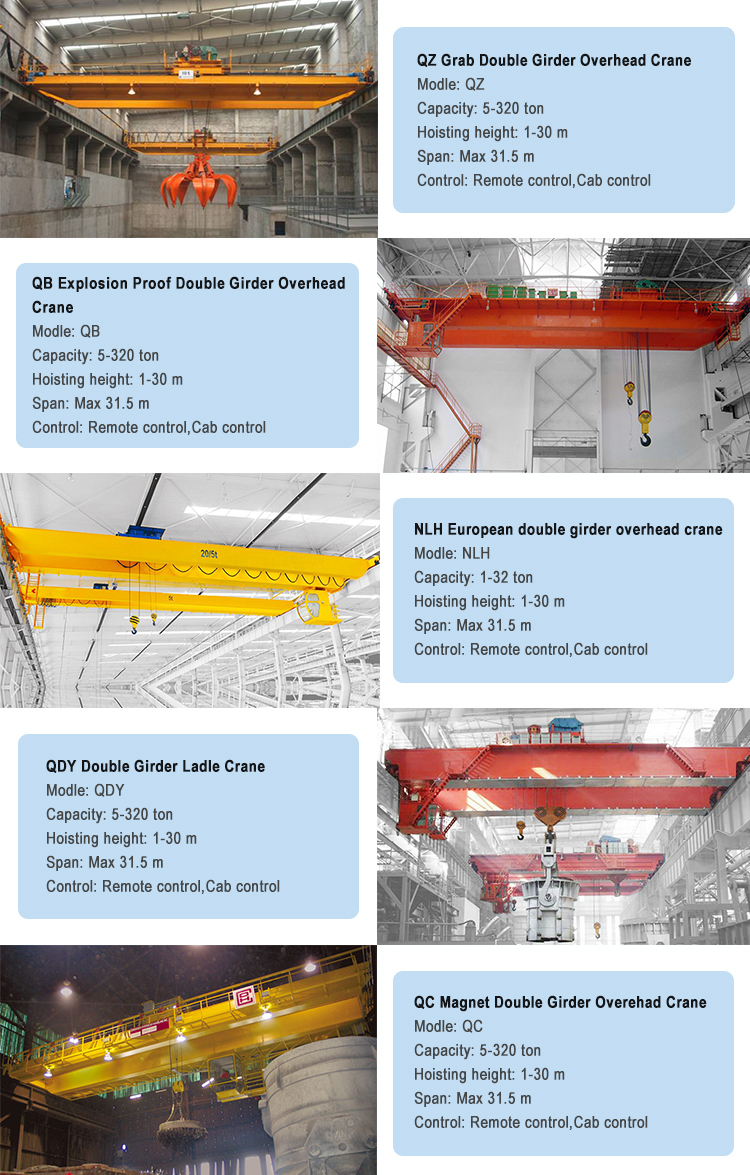

Related Products:
