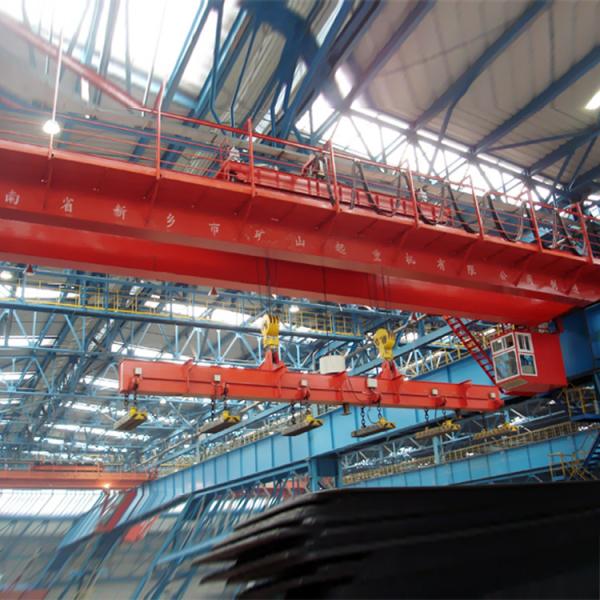

40 Meter 30 Ton QL type Steel Factory Double Hoist Overhead Crane

Electric System:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

Grus grus on her head, Girder, from the individual to the Lord I cried with a child, and the ability to move the electromagnet is a lot of iron, of iron, and of brass: And the legs of pipes,, p. This is from a crane beam that motion mechanisms elevation of the car and the electrical parts of the electromagnetic spreader. The force of the electromagnet of this, over the bridge of a crane that can last for 10 minutes of suction, after the shutdown. The shape of electromagnetic spreader can be customized according to the material to be lifted out of shape.


There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).


Sketch Drawing




Technical Parameters

Main features:

1. Three types of cabin entrances: end, side and top entrances;
2. The rotating part of the hook must be locked with screws during electromagnetic plate work;
3. Its lifting capacity includes the weight of the electromagnetic part, and the weight of the whole crane does not include the weight of the electromagnetic chuck and its components;
4. The box girder structure is welded in high strength by robots;
5. Wheels, winding drums, gears and couplings are made by CNC with the best quality;
6. Heavy duty slip ring motor from Wuxi NGP, best quality in China;
7. Electrical equipment from German Siemens
8. Independent control system: wireless control or cabin control;
9. Lifting overload protection device;
10. Polyurethane buffer;
11. Crane travel limit switch;
12. Protection against decompression;
13. Emergency stop device;
14. Current overload protector.
