Henan Mine crane Remote control 12 Ton electric cable reel gantry crane

Detail description of 12Ton electric cable reel gantry crane :

MH Type box multifunctional electric Single Girder Gantry Crane is usually equipped with electric hoist as the lifting mechanism. It is mainly composed of mast (main beam, outrigger, lower beam, etc.), hoisting mechanism, operating mechanism and electronic control part. The speed can be adjusted according to the actual needs of customers. Combined with the latest design concept, the structure is more reasonable, and it is easy to install and use. It can be easily used indoors or outdoors.

2 tons single beam mobile rail gantry crane, suitable for indoor or outdoor, with easy movement, high work efficiency, effectively replace the advantages of manual handling.

Product superiority :

Multifunctional box gantry crane is a general-purpose industrial product manufactured on the basis of mature technology and rich production experience. It is guided by modular design theory, assisted by modern computer technology, and is continuously optimized through design concepts and A kind of simple, sturdy and reliable crane produced by mature and reliable production technology. And you can add more advanced configurations as needed.The product performance and quality of multifunctional box gantry cranes are better than previous products of the same type. Help customers effectively save production costs and improve production efficiency.

Main features of MH type single beam gantry crane:

1.Simple and compact structure, economical and practical.

2.Easy to transport and install, save cost.

3.Four legs traveling on the ground through rail,steady performance.

4.Outdoor using, truss type is especially for the windy outdoors.

5.Six action movement direction, high efficiency

6. Easy and low cost maintenance, long service life

7. Outdoor cranes are equipped with rainproof devices

8. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.

Full safety system as follows:

Hook with safety latch

Weight overload protection

Emergency stop system,Over current protection,Short-circuit protection

Phase sequence protection,Zero position protection,Voltage loss protection

Anti-collision Limit switch and stopper for crane long traveling and cross traveling

Overhigh lift and overlow lift limit switch

Sound and light alarm devices,

Equipped with rail clamp.

Mechanical parts

Single welding box girder, beam deflection with DIN/FEM standard

Steel Material: Chinese standard Q235B and Q345B

Trolley rail is made of high strength hot rolled flat steel (16 Mn)

Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster

The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine

The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate

Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.

Product technical parameters:

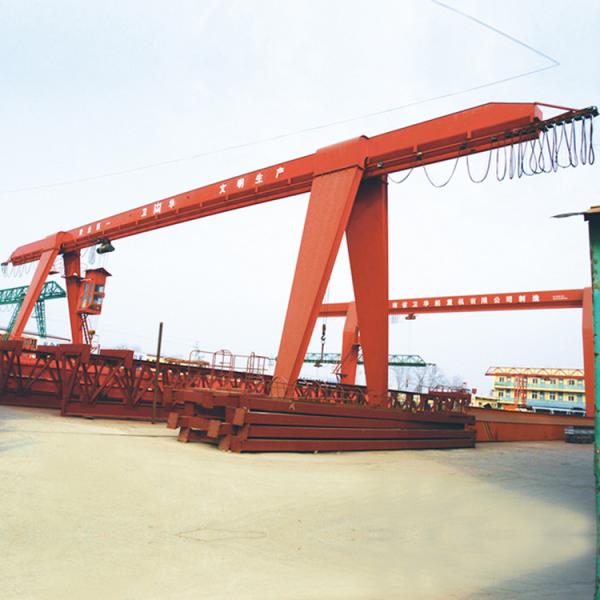

Product picture:

Sketch:

If you are interested in this Multifunctional box gantry crane, you can contact us by email.
