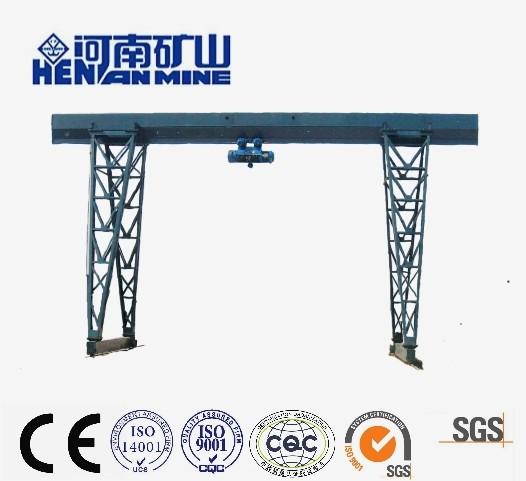

10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    Buy cheap 10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely from wholesalers

    Buy cheap 10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely from wholesalers
    • Buy cheap 10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely from wholesalers
    • Buy cheap 10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely from wholesalers

    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    Ask Lasest Price
    Brand Name : KUANGYUAN
    Model Number : MH
    Certification : ISO CE GOST
    Price : USD 10000-45000
    Payment Terms : L/C, T/T
    Supply Ability : 5000 sets per year
    Delivery Time : 45~65 work days
    • Product Details
    • Company Profile

    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    PRODUCTS DESCRIPTION

    10t MH type electric mobile single girder hook gantry crane moving freely
    5-32-ton MH type electric mobile single-girder gantry crane is a small-tonnage gantry crane.Gantry crane is a variant of bridge crane. It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track or on the ground, and the two ends of the main beam can have outrigger cantilevers. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability, and strong versatility, and are especially widely used in port cargo yards.
    Gantry cranes can be classified according to the structure of the door frame, the form of the main beam, the structure of the main beam, and the form of use.
    TYPE CLASSIFICATION
    MH type single girder gantry cranes can be classified according to the structure of the main beam; and cantilever number.
    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    Box type (MH box type)

    The steel plate is welded into a box-type structure, which has the characteristics of high safety and high rigidity. Generally used for large tonnage and super large tonnage gantry cranes, the main beam adopts box girder structure.
    Box girder also has the disadvantages of high cost, heavy self-weight and poor wind resistance.

    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    Truss type (MH flower frame type)

    The structural form welded by angle steel or I-beam has the advantages of low cost, light weight and good wind resistance.
    However, due to the large number of welding points and the defects of the truss itself, the truss beam also has the disadvantages of large deflection, low rigidity, relatively low reliability, and frequent inspection of welding points. Suitable for venues with low safety requirements and small lifting capacity.

    FEATURES AT A GLANCE
    1. Single box beam with steel legs moving through the ground beam as crane travelling system
    2. The camber of main beam will be designed as Span*1-1.4/1000.
    3. Steel Material: Q235B or Q345E
    4. Shot-blasting Sa2.5 for main girder and supporting beam
    5. Epoxy zinc rich high quality painting.
    6. With Electrification and outfitting
    7. Brand: Siemens or Schneider etc.
    8. Frequency conversion, double speed, single speed, and all hoisting and crane movements are independent, which can be run simultaneously different design duo to meet crane applications.
    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely
    PRODUCT CONFIGURATION
    MH model single girder gantry crane consists of 5 main parts, namely,
    1.the bridge structure,
    2.a-frame support legs,
    3.the crane traveling mechanism,
    4.the trolley,
    5.the electric equipment.
    The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.
    Main Girder
    Hoisting Trolley
    Motor

    Hook
    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    Cabin Control & Wireless Control
    10t MH Type Single Girder Hook Gantry Crane Electric Mobile Moving Freely

    Junction Box

    PRODUCT SPECIFICATIONS
    Box type sketch
    Trussed type sketch
    Capacity
    5t~32t
    Span Length
    10.5~31.5m
    Lifting Height
    11~12m
    Working Class
    A4-A5
    Lifting Speed
    7.6~12.75m/min
    Trolley Traveling Speed
    36m/min
    Crane Traveling Speed
    40m/min
    FAQ&CONTACT US

    Are you interested in this MH series single girder gantry crane?We are ready to quote for you according to your customizable paremeters as follows. (kindly please provide the following information when sending enquiry to us.)


    1. Lifting capacity :_____ton

    2. Span :______meters (it is center to center distance between two legs)

    3. Lifting height :_____meters (it is the distance from center of hook to floor)

    4. Gantry crane type:box type or trussed type ?

    5. Industrial voltage _____V, _____HZ, 3Phases

    6. Control mode: Pendent or Wireless remote control or both?

    7. Do you also need us to supply rail and bus bar: YES or NO? ,

    If yes,pls tell me gantry cranes' each travelling length:_____meters
    8. What material to be lifted?
    9.Are there needing cantilevers? and what number?
    10.Usage:general industry? Indoor or outdoor?
    Welcome your requirements.
