YZ type 100 Tons double girder bridge metullurgy foundry crane with cabin control

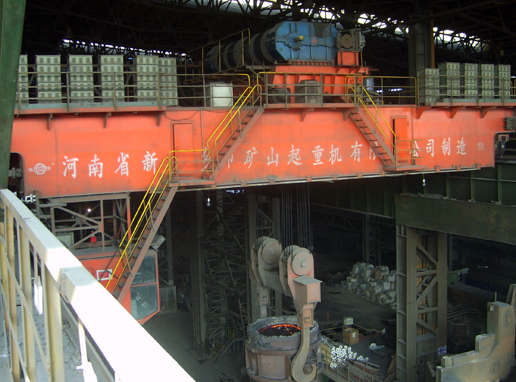

Casting Crane is one of the main equipments in the continuous casting technology of steelmaking. It is mainly used for pouring melted iron from additive bay of converter to converter; lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous casting machine.

The overall structure of foundry crane has the following forms: two girders and two rail, four girders and four rails, and four girder and six rail, etc. The form of two girder and two rail, four girder and four rail, are mainly used for middle and large-tonnage foundry crane; the form of four-girder and six-rail and two trolley is mainly used for extra large-tonnage foundry crane.

Main Features:
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Detailed Images:

Logistics system

Sketch drawing

Technique parameters

Are you interested in this YZ series double girder overhead foundry crane?We are ready to quote for you according to your customizable paremeters as follows.
(kindly please provide the following information when sending enquiry to us.)

1. Lifting capacity :_____ton
2. Span :______meters (it is center to center distance between railways)
3. Lifting height :_____meters (it is the distance from center of hook to floor)
4. Travelling length:_____meters
5. Industrial voltage __380__V, __50__HZ, 3Phases AC (if it is the same with China's ?)
6. Control mode: Wireless remote control or Cabin control or both ?
7. Do you also need us to supply rail and bus bar: YES or NO?
8. What material to be lifted?

9.Indoor or outdoor ?

Welcome your requirements.
