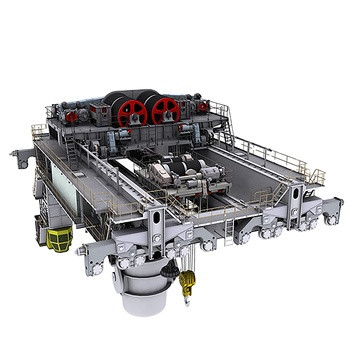

High temperature resistance 320/80T Four beams double trolley foundry crane for hot working

Simple Description Of 320/80 Ton Four Beams Overhead Casting Crane :

Casting bridge cranes are the main lifting and transportation equipment in the smelting workshop of steel mills. They are used for the liquid metal transfer, pouring, and hot metal mixing during the smelting process. Below 125t is generally a YZ type double beam structure. Above 125t is generally YZS type four-beam structure. YZS type adopts main and auxiliary double trolleys, four-beam and four-track structures, mainly composed of bridge frame, main trolley, auxiliary trolley, hook beam, crane operation, and electrical parts. The main trolley runs on the main girder track outside the bridge frame, and the auxiliary trolley is on the bridge frame. The inner side auxiliary beam runs on the track, and the main trolley pick-up device is a hook beam with fixed spacing.

YZS type adopts main and auxiliary double trolleys, four-beam and four-track structures, mainly composed of bridge frame, main trolley, auxiliary trolley, hook beam, crane operation and electrical parts. The main trolley runs on the main beam track outside the bridge frame, and the auxiliary trolley is on the bridge frame. The inner side auxiliary beam runs on the track. The main trolley pick-up device is a hook beam with a fixed spacing for lifting and transporting ladle. The sub-trolley runs under the main trolley, and the pick-up device is a hook to cooperate with the main hook. To dump molten steel, steel slag, and other auxiliary lifting operations.

Product feature Of 320/80 Ton YZS Four Girders Overhead Casting Crane :

1,Very stable because of two lifting point on hanging beam of ladle hook through wirerope pulley.
2,Very safty to lift because every one hanging beam pulley have two pcs of wirerope to avoid the risk happened once one pc of wirerope damaged.
3,Anti high temperature.
4,Capacity is 125/32tons and up.
5,Two sets of brake for each lifting point and 4sets of brake for the main lift.
6, Emergency stop system,Zero position protection.
7, Over current Protection,Voltage loss protection.
8, Short-circuit Protection,High protection level IP54 IP55.
9, Phase sequence protection.

Main Products

Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

Technical Parameter:

Real-pictures:

When you send us inquiry, plese try to give us the basic technical data as fellow:

Focus on lifting machinery for more than 20 years, welcome to contact us for more detailed information and we will serve you sincerely!

Hi, firstly let us introduce our company as follows:

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
