Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

    Buy cheap Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control from wholesalers

    Buy cheap Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control from wholesalers
    • Buy cheap Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control from wholesalers
    • Buy cheap Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control from wholesalers

    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

    Ask Lasest Price
    Brand Name : KUANG YUAN
    Model Number : Double Girder Overhead Crane
    Certification : CE
    Price : USD20000-USD38000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 6000 sets per year
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

    PRODUCTS DESCRIPTION
    Load Capacity
    Up to 32t
    Span (Track Gauge)
    Up to 31.5m
    Working Duty
    A3/A4
    Ambient Temperature
    -20~40℃

    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

    LH double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.
    Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
    There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Smelting Metal Production
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Recycling & Bulk Material
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

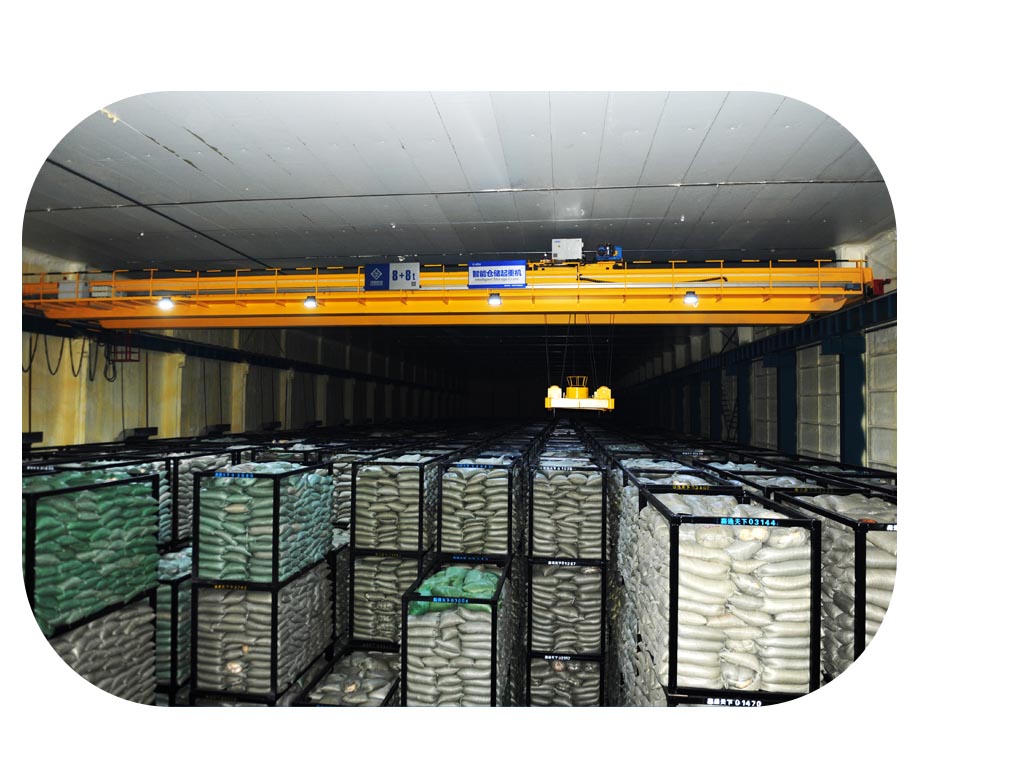

    Smart Warehousing
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Metal Plate Handling
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

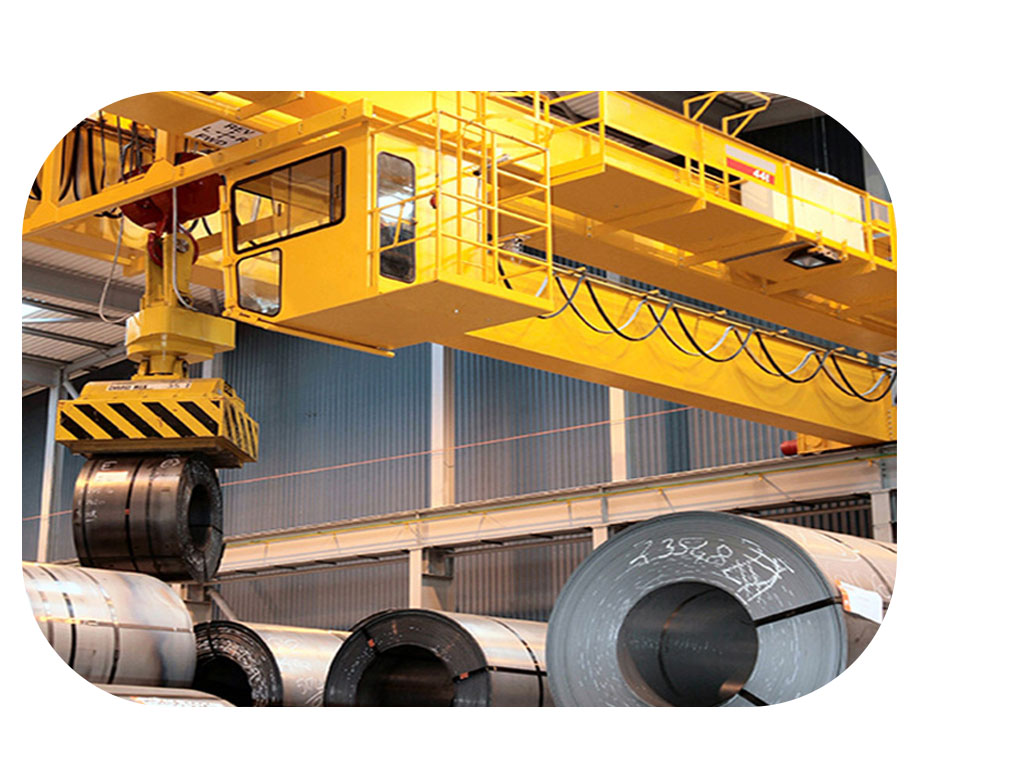

    Steel Coils & Paper industry
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Special Applications
    FEATURES AT A GLANCE
    1, Overhead traveling on the steel structure, normally in workshop, working duty from A3
    to A4
    2, Strong box type steel structure for crane.
    3, Six direction action, to make sure the enough wide working area.
    4, Full safety system as follows:
    Weight overload protection
    Emergency stop system
    Over current protection,Short-circuit protection
    Phase sequence protection
    Zero position protection
    Voltage loss protection
    Limit switch and stopper for crane long traveling and cross traveling
    Lifting overhigh and overlow limit switch
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Traditional Hoist Trolley
    Hoist Trolley
    PRODUCT CONFIGURATION
    00:
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Girder Frame
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Different Lifting Tools
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Motor with VVVF, IP54 or IP55 insulation class F or H
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Forged Hook
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Full Field Of View Cab Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Control Box
    (SIEMENS/Schneider/CHINT)
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control

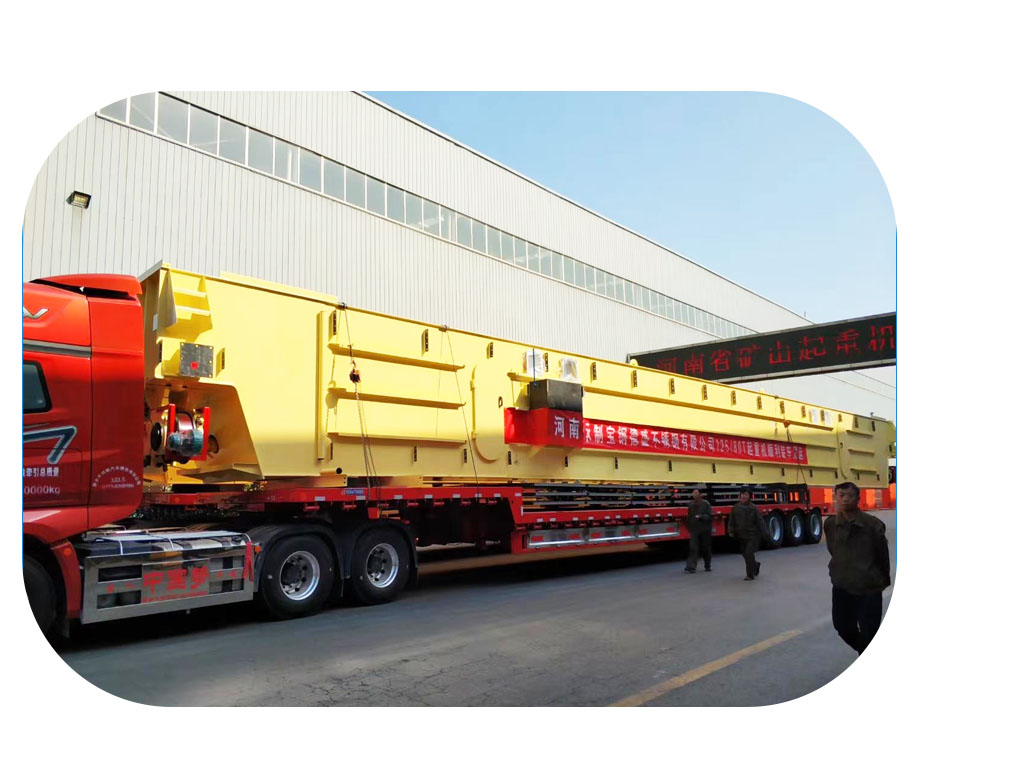

    Export installation case
    20/5Ton Span 20M Remote Control Double Girder Overhead Crane
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    PRODUCT SERIES
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    COMPANY PROFILE
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    CUSTOMER CASE
    Good Quality 8t Double Girder Overhead Crane Bridge Pendent Line Control
    FAQ
    1Q: How can you ensure the quality?
    A: Before delivery, every product with quality certification will be tested strictly by QC teams.
    You are also warmly welcomed to our factory to make the inspections.
    Meanwhile, also support live factory view & crane inspection.

    2Q: What's your delivery period?
    A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.

    3Q: What's your warranty period?
    A: 18 months for cranes accepted.

    4Q: Do you have engineer oversea installation service?
    A: Yes, we could provide the crane supervision, installation, commissioning & training.

    5Q: What kinds of products do you have?
    A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.

    6Q: Could we buy spare parts in local once they are out of work?
    A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

    7Q: Do you provide lift tools or crane parts?

    A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
