10 Ton Remote Control Single Beam Electric Overhead Traveling Crane

    Buy cheap 10 Ton Remote Control Single Beam Electric Overhead Traveling Crane from wholesalers

    Buy cheap 10 Ton Remote Control Single Beam Electric Overhead Traveling Crane from wholesalers
    • Buy cheap 10 Ton Remote Control Single Beam Electric Overhead Traveling Crane from wholesalers
    • Buy cheap 10 Ton Remote Control Single Beam Electric Overhead Traveling Crane from wholesalers

    10 Ton Remote Control Single Beam Electric Overhead Traveling Crane

    Ask Lasest Price
    Brand Name : Kunagyuan
    Model Number : LDA
    Certification : CE ISO GOST
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000PCS/YEAR
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    10 Ton Remote Control Single Beam Electric Overhead Traveling Crane

    10 Ton Remote Control Single Beam Overhead Traveling Crane

    10 Ton Remote Control Single Beam Electric Overhead Traveling Crane:
    Product Description:

    LDA model 10Ton Single Beam Electric Overhead Traveling Crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3 A4.

    10Ton Single Beam Electric Overhead Traveling Crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.

    10Ton Single Beam Electric Overhead Traveling Crane is matched with electric hoist which is CD model or MD model.

    It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

    the working environment temperature is -10℃~60℃, and the relative humidity does not exceed 50% at a temperature of 40℃. Other places where molten non-metallic materials and hot solid metals are lifted can also be used as reference.


    Technical parameters of 10Ton Single Beam Electric Overhead Traveling Crane:
    Lifting weight(T)35101620
    Span(m)10.5~31.5
    Max Lifting height(m)6~30
    Working classA3 A4
    Main Hoisting Speed(m/min)8,8/0.88,8/0.87,7/0.73.5,3.5/0.353.5,3.5/0.35
    Trolley Cross Traveling Speed(m/min)20,2~20(frequency inverter)
    Crane Long Traveling Speed(m/min)30,3~30(frequency inverter)
    Motor TypeSquirrel cage motor
    Motor (Kw)Main Hoisting4.57.5131318.5
    Trolley Cross Traveling1*0.4,1*0.8,2*0.8
    Crane Long Traveling2*0.8,2*1.5,2*2.2
    Control modePendent line control,Remote control,Cabin control
    Recommended Rail model24kgs/m30kgs/m38kgs/m43kg/m
    Power source3Ph A.C 50Hz 380V


    Product photo of 10Ton Single Beam Electric Overhead Traveling Crane:

    10 Ton Remote Control Single Beam Electric Overhead Traveling Crane10 Ton Remote Control Single Beam Electric Overhead Traveling Crane


    Main Features of Top quality 10Ton Single Beam Electric Overhead Traveling Crane :


    1,Strong box type, one whole shape main beam welded by robot machine, very strong and beautiful.
    2, Sand blast for the whole crane steel structure, to make sure the paint is very strong.
    3, Six action direction movement, to get enough working area.
    4, Anti high temperature
    5, Full safety system as follows:
    Weight overload protection
    Emergency stop system
    Over current protection
    Short-circuit protection
    Phase sequence protection
    Zero position protection,Voltage loss protection
    Limit switch and stopper for crane long traveling and cross traveling
    Overhigh lift and overlow lift limit switch

    Company Information:

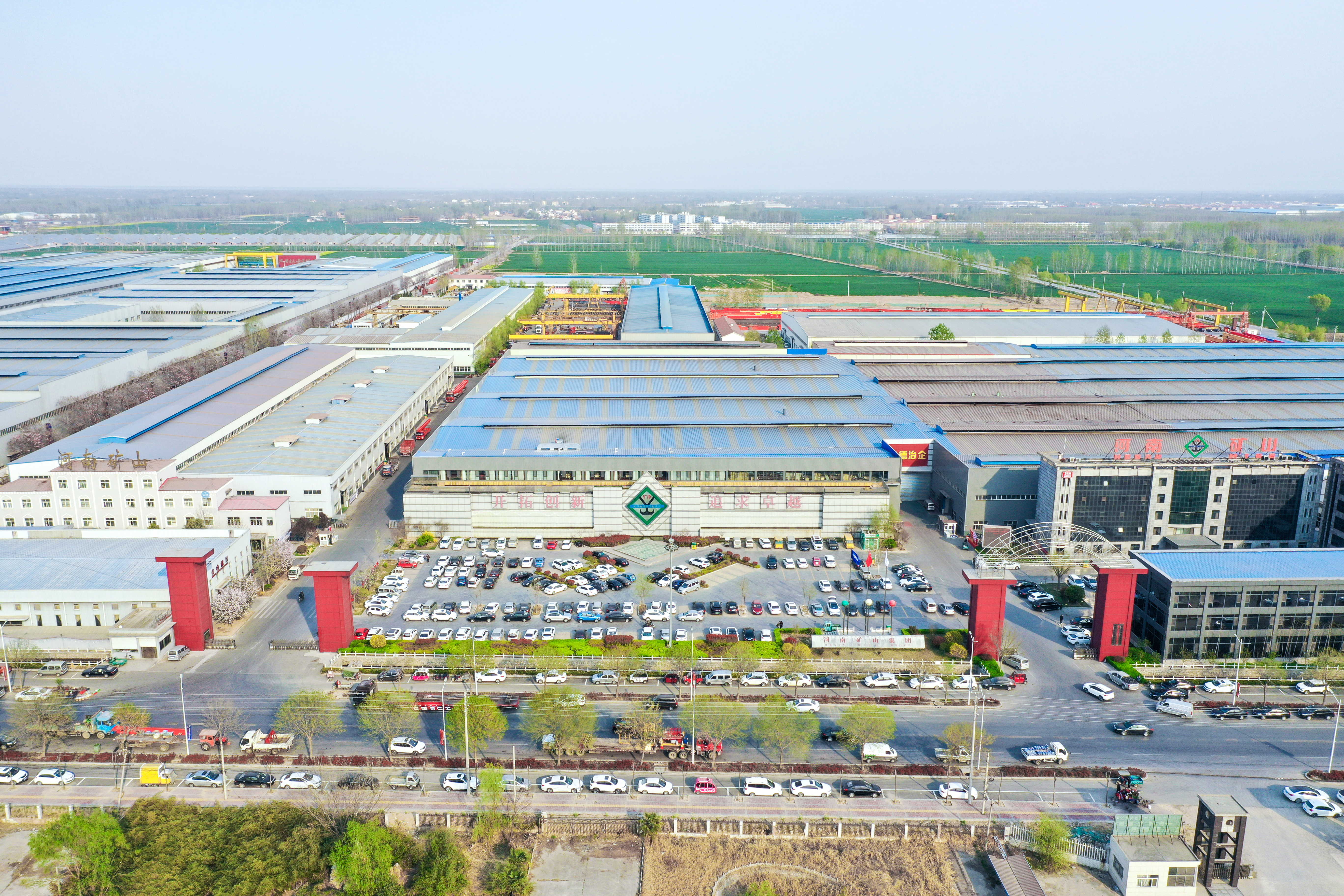

    Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Container gantry crane/European type crane and hoist /Electric Winch,Jib crane,Scissor Lift/Crane components.
    Henan Mine Crane has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, ISO,CE etc certifications, cranes are exported to 120countries.
    In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works.
    Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
    Certifications:
    We have passed CE, GOST, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
