High performance wall-travelling jib crane with wireless remote control customized scheme

Jib crane is a general light-tonnage lifting machinery.Wall-mounted jib crane and wall-travelling jib crane are two common type jib cranes,But here are some differences between them:

1.From concept :

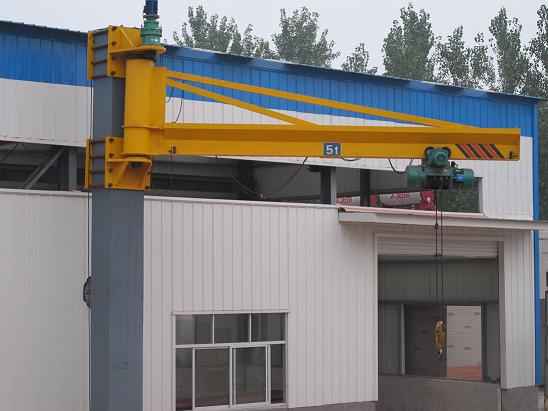

Wall-mounted jib crane, also known as pilaster jib crane. It consists of a cantilever device and an electric hoist(or manual hoist is the same used). The cantilever arm is fixed on the wall or cement column and it can be rotated according to user needs. The slewing type is divided into manual slewing and electric slewing. The electric hoist is installed on the cantilever arm track for lifting heavy objects.

Wall-travelling jib crane is a new type of material lifting equipment developed on the basis of wall-mounted jib crane. This type jib crane can move longitudinally along the rail, and at the same time, the electric hoist can complete the hoisting along the horizontal or vertical direction of the cantilever arm.

Type: BB type High load cantilever jib crane

Lifting capacity: Up to 15ton

Arm length: 3.7~6.5m. Nonstandard design can also be caught out according your requirement.

Structure:

The hoist: traverses through the Ⅰ beam under the arm and lifts up and down;

The arm: mounted on the rails of the wall

Here are some main diffenences from wall-mounted jib crane:

1.From the scope of work :

Working scope of wall-mounted jib crane is a semi-circular with limited working range;but wall-travelling jib crane can travel along the rails so that having larger working range.

2. From structure:

The jib arm of wall-mounted jib crane could rotate but no moving; however the wall-travelling jib crane can travelling along the rails but no rotating.

3. From cost:

Because the wall-mounted jib crane is installed on the wall or cement column, the cost will be lower; the wall-travelling jib crane needs a special running track/rails, so the cost will be relatively high.

Product Application:

Wall-travelling jib crane is suitable for multi-station flow operations/assembly line,it does not require floor space,and uses rails installed on the wall to run along the rails to realize the lifting and unloading of work-pieces at multiple stations.Reduce the dependence of the station on the larger cranes in the workshop,reducing the waiting time and improving the work efficiency.

1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams.You are also warmly welcomed to our factory to make the inspections.Meanwhile, also support live factory view & crane inspection.

2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.

3Q: What's your warranty period?
A: 18 months for cranes accepted.

4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.

5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.

6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is famous international brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.

Hi, firstly let us introduce our company as follows:

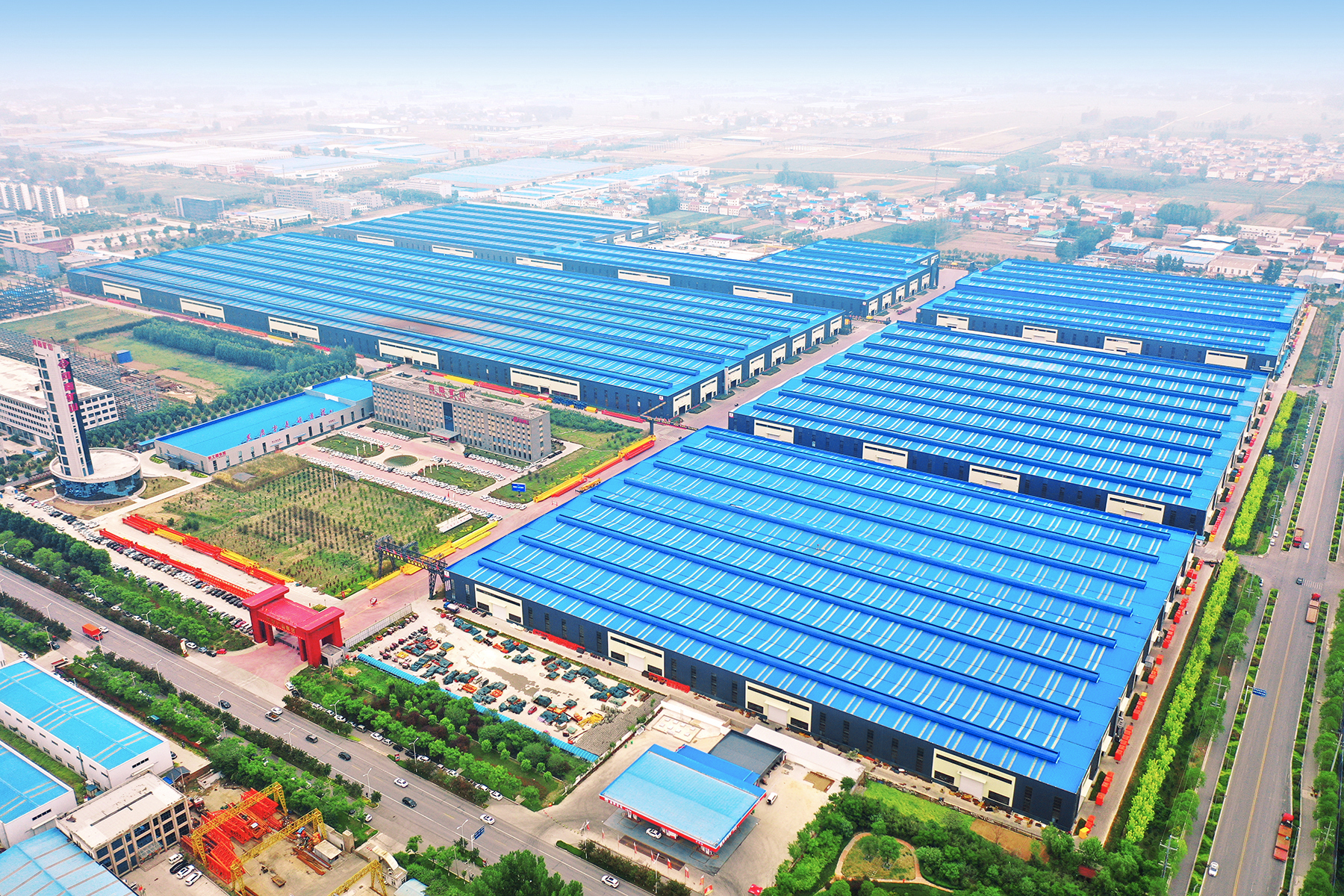

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
