Product Series:

Henan Mine Crane Co.,Ltd started in 2002,and have developed an leading industrial crane manufacturer in China.There are many types cranes and crane spareparts.
single girder bridge crane
double girder bridge crane
single girder gantry crane
double girder gantry crane
semi gantry crane
mini portable gantry crane
rail mounted gantry crane
container gantry crane
hydraulic lifting platform
column-type/wall-hanging jib crane
various lifting mechanism:wire rope hoist, chain hoist, winch, grab, magnet, hang beam...

Product description:

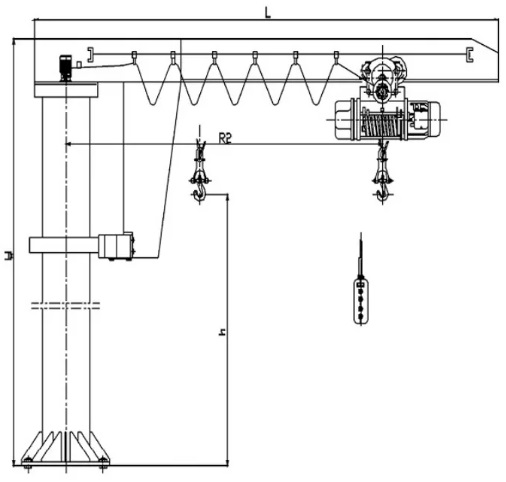

5tons light level ZB-A type slewing level jib crane from Chinese supplier Henan Mine Crane

Swing arm jib crane is one of the new middle lifting equipment in recent years,it has many advantages compared with other lifting machines,it has special structure, safe performance,high efficiency,energy saving,time saving and flexibility and so on. What’s more,it can operate causally in three-dimensional space.

It has more advantages than other conventional hoisting equipment in short-distance and intensive hoisting places, and is widely used in different places in various industries.

Application:Workshop, warehouse, production line, etc.

Main Features:

1. Column

The column supports and fixes the rotating arm of the jib crane, and its upper and lower supports are composed of single-row tapered roller bearings that bear radial and axial forces.

2. Swing arm

The rotating arm is welded by the combination of I-beam and support. Its function is to realize the horizontal movement of the electric or manual trolley and the up and down movements of the hoist. It can rotate around the column. The rotation angle is generally divided into 360°, 270°, 180° (Can be customized according to customer needs).

3. Support arm and reducer

The support arm supports the rotating arm and increases the bending resistance and strength of the rotating arm. The roller is driven by the reducer to realize the electric rotation of the jib crane.

4. Lifting hoist

The hoisting mechanism of the jib crane can be equipped with a manual hoist, an electric chain hoist and an electric wire rope hoist. The hoist lifts heavy objects and moves horizontally along the jib crane by a manual or electric trolley, which increases the working range of the jib crane.

5. Electrical part

The electrical part adopts the C-rail plus flat cable power supply system, the low-voltage indirect control safety voltage is operated, and the control is realized by the flashlight door button;

The control methods of this type of crane are generally divided into pendant line button control and wireless remote control. Different buttons on the control are used to control the rapid rise, rapid fall, slow rise and slow fall of the electric hoist, as well as the moving of the hoist trolley and the rotation of the jib crane. , the collector ring in the column provides the power supply when the cantilever rotates arbitrarily.

Hi, firstly let us introduce our company as follows:

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
