    Span10.5m Foundry Crane

    Ask Lasest Price
    Brand Name : Kuangshan
    Model Number : QDY
    Certification : CE,ISO
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100SETS
    Delivery Time : 30 Work Days
    • Product Details
    • Company Profile

    Span10.5m Foundry Crane

    16/3.2T Span10.5 Height 16/18 QDY Type Hook Bridge Cast Crane


    QDY Type Hook Bridge Cast Crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.


    Product introduction:


    Lifting weightPrimary handcartT16
    Secondary handccart3.2
    SpanM16
    Lifting heightPrimary handcart16
    Secondary handccart18
    Working classA6
    SpeedLiftPrimary handcartm/min10.7
    Secondary handccart14.6
    TravelPrimary handcart44.6
    Secondary handccart76
    MotorLiftPrimary handcartkw37
    Secondary handccart11
    TravelTrolley3.7
    Cart2*7.5
    WeightTrolleyKG6780
    Total21500
    Max wheel pressureKN163
    Power supply3-phase A.C. 50-60Hz 380-440V

    Working condition:

    1.Working tempreture:-10~+60°C,
    2.Work class:A6-A8,
    3.Power Source:3ph,380V,50HZ or other under customer requirement.

    Safety feature:

    1.Weight overload protection device,
    2.Top quality long time bearing polyurethane materials buffer,
    3.Crane traveling limit switch, Voltage lower protection function,
    4.Emergency stop system,
    5.Current overload protection system and so on!

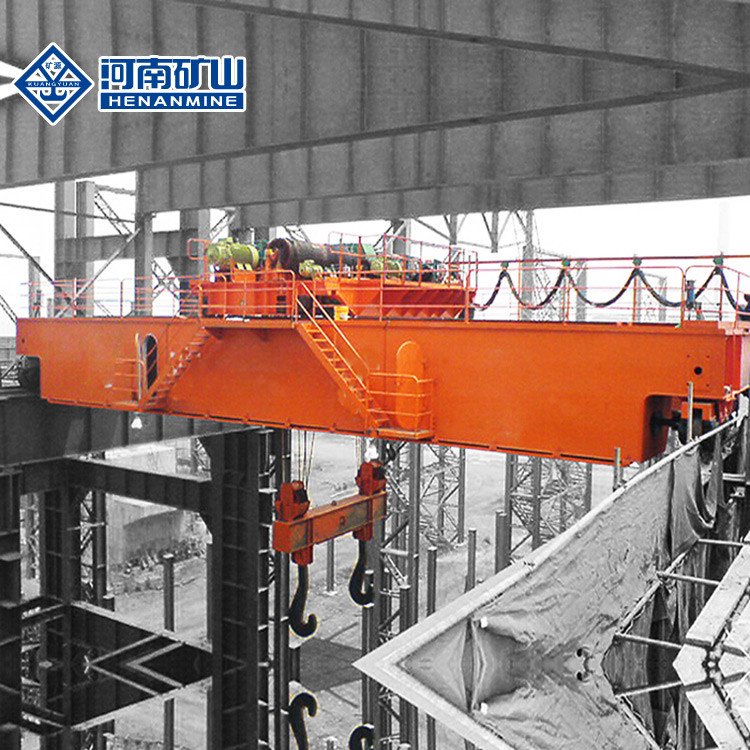

    product photo of QDY Type Hook Bridge Cast Crane :


    Span10.5m Foundry Crane


    Span10.5m Foundry Crane


    Sketch:

    Certifications
    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
    Span10.5m Foundry Crane
    Packaging & Shipping


    FAQ
    Q1.What do Henan mine crane do?
    A: We design,manufacture,install overhead crane ,granty crane, port ciane,hoist mwinch and provide customer lifting solutions.
    Q2.Do you provide professional crane servicing?
    A: Yes and our service team offer a range of professional services to installation and your crane.
    Q3.What do I need to consid when purchasing from you?
    A:Standard items to conside when purchaing any lifting equipment such as over as overhesd crane and gantry crane or hoist ,it including safe working load ,span and lifting height, duty cycles and cost of spare parts.
    Q4.What makes you different from other manufacturers?
    A: We have trained service technicians who will be able to get your material handing equipment up and running ,and have been providing our customer's an effective solution.
    Q5.What areas do yo serves?
    A: We maily service in china and can send engineers provided installations and maintenancein all over the world.
