    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials

    Ask Lasest Price
    Brand Name : KUANGYUAN
    Model Number : CD/MD
    Certification : ISO 9001
    Price : USD 800/SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 SETS/YEAR
    Delivery Time : 25 DAYS
    • Product Details
    • Company Profile

    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials

    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials

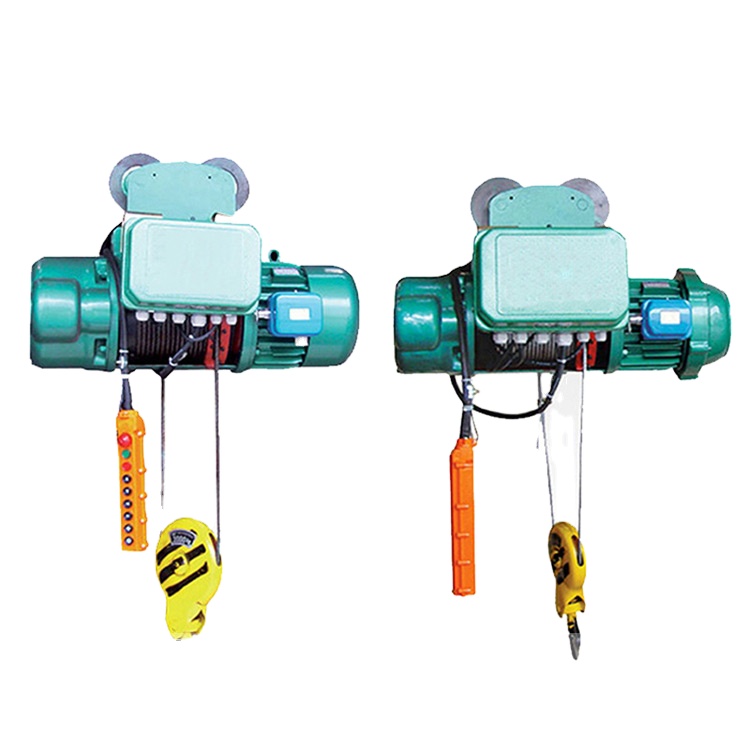

    Electric wire rope hoist is a small lifting equipment with the advantages of compact structure, light weight, small volume, strong universality of parts and convenient operation, etc. Welding, such as the installation and movement of various large and medium-sized concrete, steel structures and mechanical equipment, suitable for construction and installation companies, civil engineering and bridge construction in factories and mines, electric power, ships, automobile manufacturing, construction, highways, bridges, metallurgy, mining , Slope tunnel, shaft management and protection and other infrastructure engineering machinery and equipment.


    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials


    Product details
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    Model number
    CD,MD Electric hoist
    Capacity
    0.25~20t
    Lifting height
    3~30m
    Lifting speed
    3(3/0.3)m/min, 2(2/0.2)m/min, 3.5(3.5/0.35)m/min
    Traverse speed
    20m/min, 30m/min or double speed
    Industrial voltage
    220V-440V,50-60Hz,3Phase or as your demands
    Control methods
    Pendant push button or remote controller
    Working temperature
    -25°C ~ +42°C
    Working class
    A3
    Color of electric hoist
    As your demands
    Electrical system
    Schneider brand contactor

    Product Structure
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    Structural features

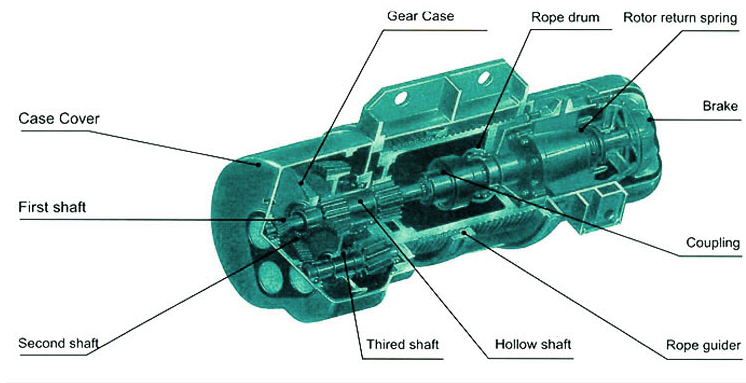

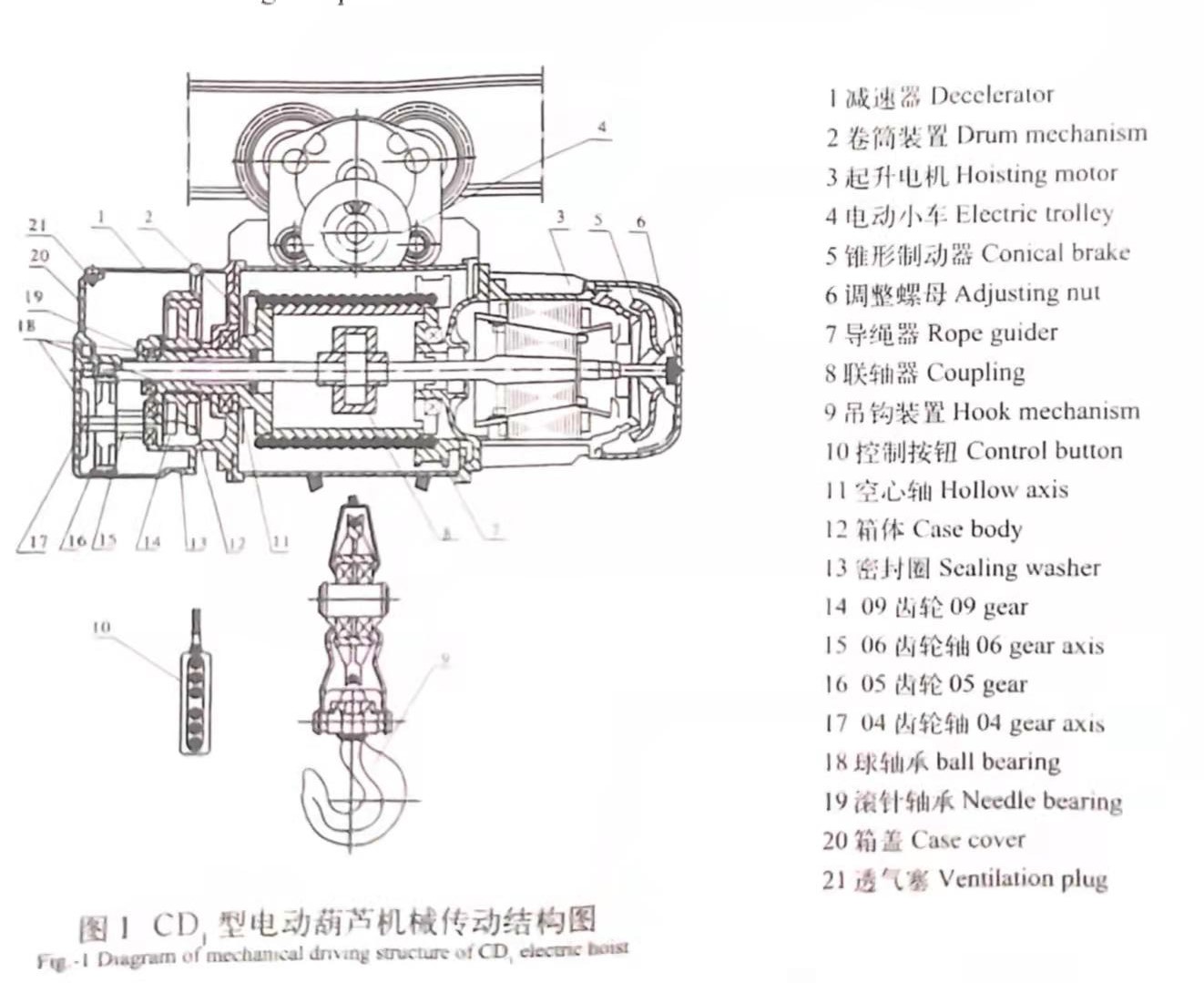

    The components of wire rope electric hoist are: motor, transmission mechanism, reel and wire rope. The motor and the reel can be roughly divided into four types based on the different positions of each other. (1) The electric hoist whose motor axis is perpendicular to the axis of the drum adopts worm gear transmission, which is large in width, heavy in structure, low in mechanical efficiency, and difficult to process. No manufacturer produces products of this type of structure anymore. Wire rope electric hoist

    (2) The electric hoist with the motor axis parallel to the drum axis has the advantage of small height and length.Its disadvantages are large width, grouping, and complicated manufacturing and assembly. The track turning radius is large.
    (3)The electric hoist with the motor installed in the drum has the advantages of small length and compact structure. Its main disadvantages are poor heat dissipation conditions of the motor, poor grouping, inconvenient inspection, installation, and maintenance of the motor, and complicated power supply devices. (4) The electric hoist with the motor mounted on the outside of the drum has the advantages of good grouping, high degree of generalization, easy to change the lifting height, and convenient installation and maintenance. The disadvantage is: the length is large.
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    Customer cases
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    Our case of cooperation with China Aerospace
    62+Cranes to CASC(China Aerospace) To Help Lanch Of Aerospace Satellite
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    Our case of cooperation with Baosteel Group
    The Crane Produced By MINE CRANE For The Largest Iron And Steel Enterprise In The World
    0.25T-20T Electric Wire Rope Hoist For Construction Moving Materials
    We have the most robot production lines in the industry
    100+Ai(Artificial Intelligence) Robot And Many Other High Technology Machines

    FAQ
    Customer: What's the information should I provide when inquiry?
    A1: More details or drawings, better.
    A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated .

    Customer: What do Henan Mine Crane do?

    A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions .

    Customer: What makes you different from other manufactures?

    A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution .
    Customer: What areas do you service? How can we install the crane?
    A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training Moreover, our best sales can visit your country.

    Customer: Can this type work in hazardous environment?

    A5: Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    Customer: Can you provide the various lifting tools?

    A6: Sure, we can provide any lift tools such as lift sling belt
    lift clamp, grab, magnet or other specials as your requirement!
