Cabin Control 50ton Rail Mounted Container Gantry Crane For Lifting Container

1. Product Description

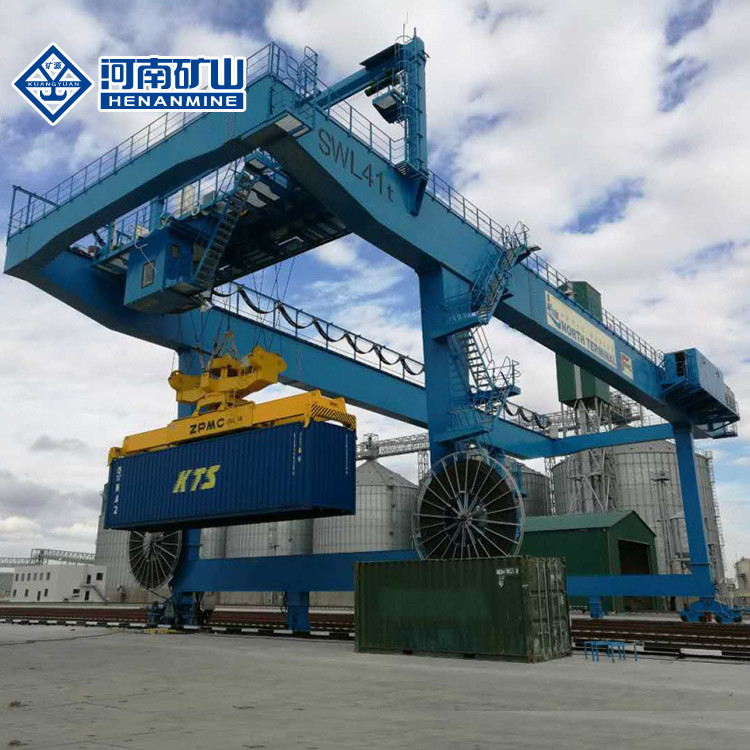

Rail-mounted gantry cranes (RMG) are specialized yard container handling machines.

Rail Mounted Double Girder Container Gantry Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.

Rail mounted container gantry cranes (RMG) is a specialized container handling machine that is applicable in container yard, railway container terminal, to handle international standard containers.Rail mounted container gantry cranes (RMG) can travel on rail by means of the yard power, usually powered by cable and cable drum, to lift and stack containers in the yard area with the equipment of the 20' or 40' or 45’ telescopic spreader (or twin-lift spreader if needed).

2. Product Parameters

Lifting weight (t)	10	16	20/10	32/10		36/16	50/10
Span (m)	18~35	18~30	18~35	22	26	22~35	35
Lifting height (m)	Main hook	11.5	10.5,12	10.5	11.5	11.5	12
	Auxiliary hook			11	12	12	13
Speed (m/min)	Main hook	8.5	7.9	7.2	7.5	7.8	6
	Auxiliary hook			10.4	10.4	10.5	10.4
	Trolley travel	43.8	44.5	44.5	41.9	41.9	38.13
	Long travel	37.6,40	38,36	38,36	40	40,38	38
Duty classification	A5
Power source	Three-phase AC. 127~480V 50/60Hz

Features At A Glance

1.Safety First: Equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
2.Great Versatility: Grab bucket, container spreader and other lifting devices can be equippe
3.Smooth Starting To Avoid Load Sway: Frequency conversion, double speed, single speed, and all hoisting and crane movements are independent, which can be run simultaneously different design duo to meet crane applications.

4.Competitive Quality And Price!!!

COMPANY PROFILE

Established in China in 2002, Henan Mine Group is a multi-national specialist designer, manufacturer & supplier of:
* Overhead Bridge Cranes

1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to
our factory to make the inspections.Meanwhile, also support live factory view & crane inspection.

2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.

3Q: What's your warranty period?
A: 18 months for cranes accepted.

4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.

5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric
Winch, etc.

6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift
clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
