Brand Name : | Kunagyuan |
Model Number : | QDY |
Certification : | CE ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 5000PCS/YEAR |
Delivery Time : | 60-90days |

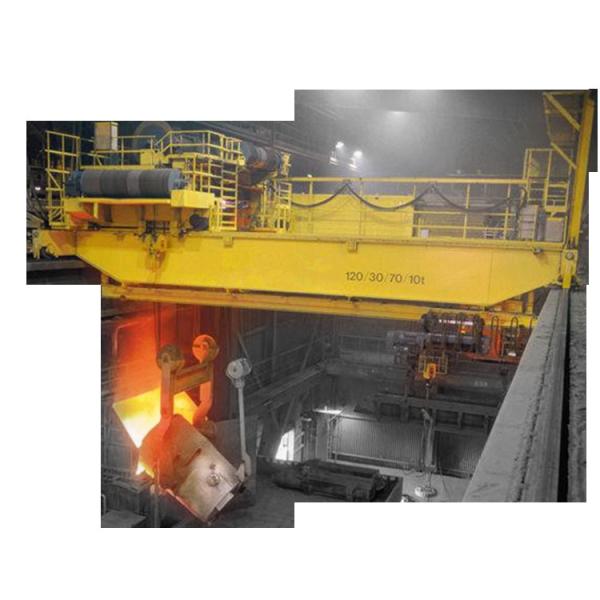

Double Girder cabin control Electric Bridge traveling Casting Crane
Product Introduction:
QDY 5-74Ton Double girder cabin control electric bridge traveling casting crane is mainly used at the place where the molten metal is lifted, it is the main lifting and transportation equipment in the smelting workshop of the steel plant, and is used to lift and transfer and pour molten iron in the smelting process, the thermal—protective coating is added at the bottom of the main girder.
Technical Parameters of Double girder cabin control electric bridge traveling casting crane:
Lifting weight(t) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | ||
Span(m) | 10.5~31.5 | ||||||||
Max Lifting height(m) | 16 | 16 | Main hook | 16 | 12 | 16 | 12 | 22 | |
Aux.hook | 18 | 14 | 18 | 16 | 24 | ||||
Working class | A7 | ||||||||
Speed (m/min) | Hoisting | 15.5 | 10.4 | Main hook | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
Aux.hook | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
Traveling of crab | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 33.8 | |||
Traveling of trolley | 92.7 | 92. 7 | 76 | 76 | 89 | 75 | 67.3 | ||
Motor (type/kw) | Hoisting | 15 | 22 | Main hook | 37 | 45 | 55 | 75 | 90 |
Aux.hook | 11 | 15 | 15 | 22 | 37 | ||||
Traveling of crab | 1.5 | 2.2 | 3.7 | 3.7 | 7.5 | 11 | 15 | ||
Traveling of crane | 2*5.5 2*7.5 | 2*5.5 2*7.5 | 2*7.5,2*11 | 2*7.5, 2*11 | 2*11 | 2*11, 2*15 | 2*22 | ||
Steel track | trolley | 18kg/m | 24kg/m | 43kg/m | |||||
crane | 43kg/m | 43kg/m or QU70 | QU70 | QU80 | QU100 | ||||
Power source | 3Ph A.C 50Hz 380V |
![]() |
