    Aerial Work Articulated Boom Lift , Indoor / Outdoor Mobile Platform Lift

    Ask Lasest Price
    Brand Name : KuangYuan
    Model Number : Lifting Platform
    Certification : CE ISO SGS GOST
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 35000 sets per year
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Aerial Work Articulated Boom Lift , Indoor / Outdoor Mobile Platform Lift

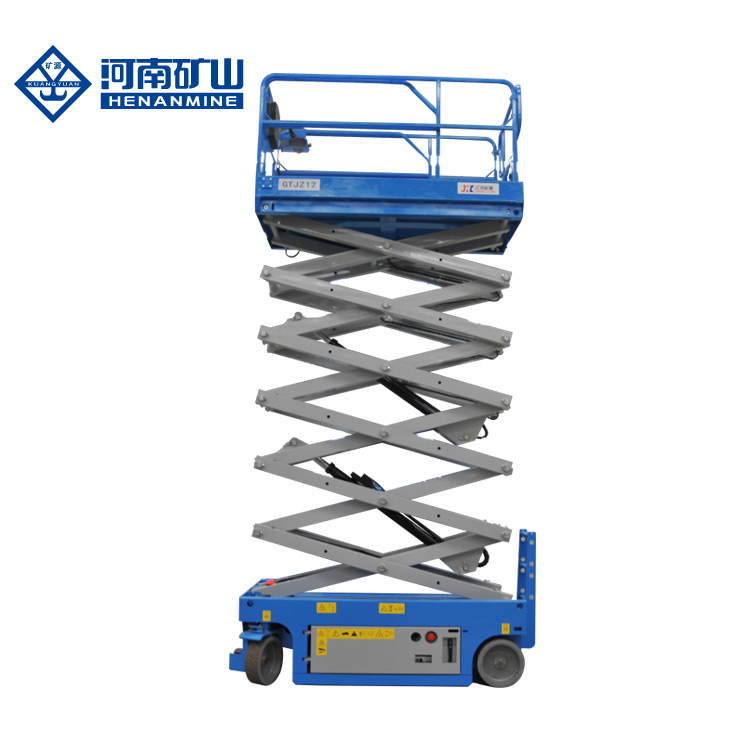

    500kg Lifting Height 12m Battery Mobile Scissor Aerial Work Lift Platform Price


    Product Description

    Lifting platform is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power.


    Product Details



    Product Structure


    modelsitems
    07series08series12series14series
    GTJZ
    0807HD0808HD1008HD1012HD1212HD1412HD1414HD1614HD
    capacity230kg380kg230kg450kg320kg320kg450kg200kg
    Capacity-extension deck113kg113kg113kg113kg113kg113kg113kg113kg
    Max occupancy22222222

    Max working

    height-A

    7.80m8.20m10.10m10.10m12.00m13.80m13.50m15.70m

    Max platform

    height-B

    5.80m6.20m8.10m8.10m10.00m11.80m11.50m13.70m
    Length-C1.86m2.42m2.42m2.42m2.42m2.42m2.79m2.79m
    Width-D0.76m0.83m0.83m1.17m1.17m1.17m1.27m1.27m

    Height(raillings

    unfolded)

    2.19m2.24m2.37m2.36m2.49m2.62m2.49m2.62m

    Height-E(railling

    folded)

    1.85m1.94m2.07m1.80m1.93m2.06m1.93m2.06m

    Platform size

    (L×w-F)

    1.67m× 0.74m2.27m× 0.83m2.27m× 0.83m2.27m× 1.14m2.27m× 1.14m2.27m× 1.14m2.64m× 1.14m2.64m× 1.14 m

    Extension

    deck

    size -G

    0.90m0.90m0.90m0.90m0.90m0.90m0.90m0.90m

    Ground

    clearance

    (stowed)

    0.10m0.10m0.10m0.10m0.10m0.10m0.10m0.10m

    Ground

    clearance

    (elevated)

    0.02m0.02m0.02m0.02m0.02m0.02m0.02m0.02m
    wheelbase1.40m1.87m1.87m1.87m1.87m1.87m2.24m2.24m

    Min turning

    radius

    (inside)

    0m0m0m0m0m0m0m0m

    Min turning

    radius

    (outside)

    1.60m2.25m2.25m2.23m2.23m2.23m2.25m2.25m

    Lifting/

    driving motor

    24V/3.0Kw24V/3.3Kw24V/3.3Kw24V/3.3Kw24V/3.3Kw24V/4.5Kw24V/4.5Kw24V/4.5Kw

    Driving speed

    (stowed)

    3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h

    Driving speed

    (elevated)

    0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h

    Lifting/

    lowering speed

    18/22sec24/34sec28/40sec28/40sec45/36sec50/38sec60/45sec80/60sec
    batter

    4×6V/

    225Ah

    4×6V/

    225Ah

    4×6V/

    225Ah

    4×6V/

    225Ah

    4×6V/

    240Ah

    4×6V/

    260Ah

    4×12V/

    300Ah

    4×12V/

    300Ah

    charger24V/25A24V/25A24V/25A24V/25A24V/25A24V/25A24V/25A24V/25A
    Max gradeability0.250.250.250.250.250.250.250.25
    Max tilt3°/1.5°3°/2°3°/1.5°3°/2°3°/2°3°/1.5°3°/2°3°/1.5°
    tires

    Φ323×

    100mm

    Φ381×

    127mm

    Φ381×

    127mm

    Φ381×

    127mm

    Φ381×

    127mm

    Φ381×

    127mm

    Φ381×

    127mm

    Φ381×

    127mm

    Weight1260kg1980kg2100kg2230kg2480kg3100kg3020kg3180kg
