10ton 15ton 20ton Steel Factory Double Girder Electromagnetic Bridge Crane

product description:

Electric System:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;

Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

Introduction:

Double Girder Overhead Crane with Electromagnet is a specialized crane for lifting and moving steel products, steel plates and steel pipes. This crane is constituted by girder, traveling mechanisms, lifting trolley, electric parts and electromagnet spreader. The electromagnetic suction force of this overhead crane can last 10 minutes after power off. And the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted.

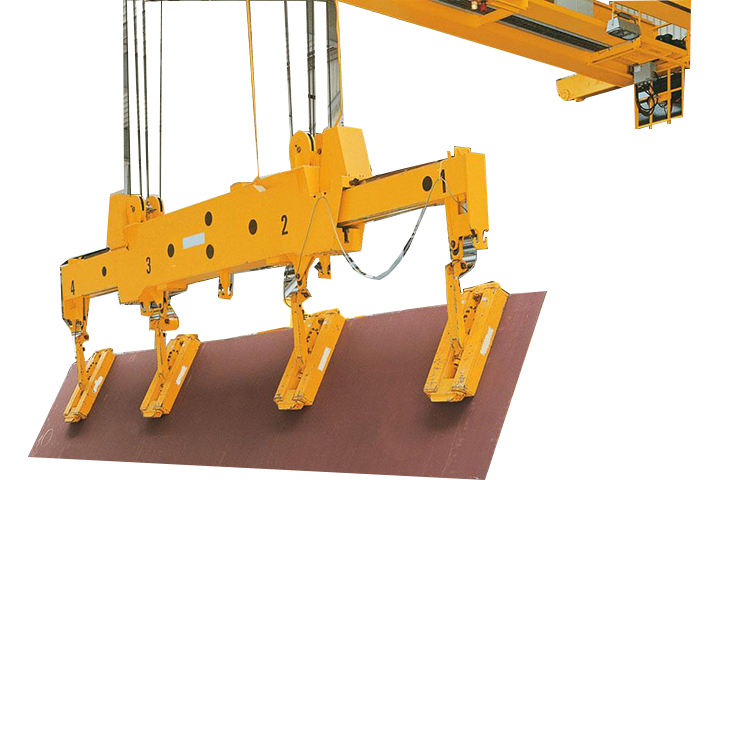

There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).

Technical Parameters:

Main Features:

1. Three kind entrances to the cab: end, side and top entrances;

2. The rotating part of hook must be locked by screws during electromagnetic plate working;

3. Its lifting capacity includes the weight of electromagnetic part, and the weight of whole crane does not include the weight of electromagnetic chuck and its components;

4. Box-typed girder structure is welded in high strength by robots;

5. Wheels, winding drums, gears and couplings are manufactured by CNC with best quality;

6. Heavy-duty slip ring motor from Wuxi NGP, the best quality in China;

7. Electric equipment from German Siemens

8. Independent control system: wireless control or cab control;

9. Lifting overload protection device;

10. Polyurethane buffer;

11. Crane travel limit switch;

12. Decompression protection;

13. Emergency shutdown device;

14. Current overload protector.

Sketch Drawing

Main Product:

Henan Mine Crane Co.,Ltd started in 2002,and have developed an leading industrial crane manufacturer in China.There are many types cranes and crane spareparts.
single girder bridge crane
double girder bridge crane
single girder gantry crane
double girder gantry crane
semi gantry crane
mini portable gantry crane
rail mounted gantry crane
container gantry crane
hydraulic lifting platform
column-type/wall-hanging jib crane
various lifting mechanism:wire rope hoist, chain hoist, winch, grab, magnet, hang beam...

FAQ

A: Can you provide custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
