    3Ton 5 Ton 10Ton LDA Steel Plant Crane Warehouse Electric Single Beam Bridge Crane

    Ask Lasest Price
    Brand Name : Kuangyuan
    Model Number : LDA
    Certification : CEI,SO
    Price : 1000USD
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 100ets/month
    Delivery Time : 30working days
    • Product Details
    • Company Profile

    3Ton 5 Ton 10Ton LDA Steel Plant Crane Warehouse Electric Single Beam Bridge Crane

    Product Description of 5T LDA Single Girder Overhead Crane with Electric Hoist

    Electric hoist Single Girder Overhead Crane is a light duty lifting equipment running on rails, which is mainly composed of gantry main girder or main beam,end beam or end truck,lifting mechanism(electric hoist),running mechanism and electronic control system.

    It takes electric hoist as lifting mechanism and runs along the lower flange of main beam I-steel when working.


    LDA Single Girder Overhead Crane is designed and manufactured as per ISO,DIN (Germany), FEM (Europe) standard,compact structure,light deadweight,soft starting and smooth running, it is widely used in plant workshop,warehouse,material stock to lift goods or cargo,or for machinery assembling.


    Product Techncial Parameters of 5ton Single Girder Overhead Crane with Electric Hoist
    Capacityt35101620
    Span7.5~31.5m
    SpeedHoistingm/min8. 8/0.87. 7/0.73.5, 3.5/0.356. 6/0.6
    Travelling of crab20
    Travelling of craneSurface20(30)20
    Cabin20(30)20
    Electric hoistType

    CD1-3

    MD1-3

    CD1-5

    MD1-5

    CD1-10

    MD1-10

    CD1-16

    MD1-16

    HC20T
    Lifting heightm6,9,126,9,12,189,129,129,12
    Working classA3~A5
    Power supply3-phrase 50HZ 380V
    Safety Features of 5Ton Single Girder Overhead Crane with Electric Hoist

    1). Overload limiter

    2). Overcurrent protection,Short circuit protection.

    3). Lifting limit switch,cross and long traveling limit switch

    4). Gravity limit switch

    5). Phase squence protection,Zero position protection.

    6). Emergency stop button

    7). Voltage loss protection.

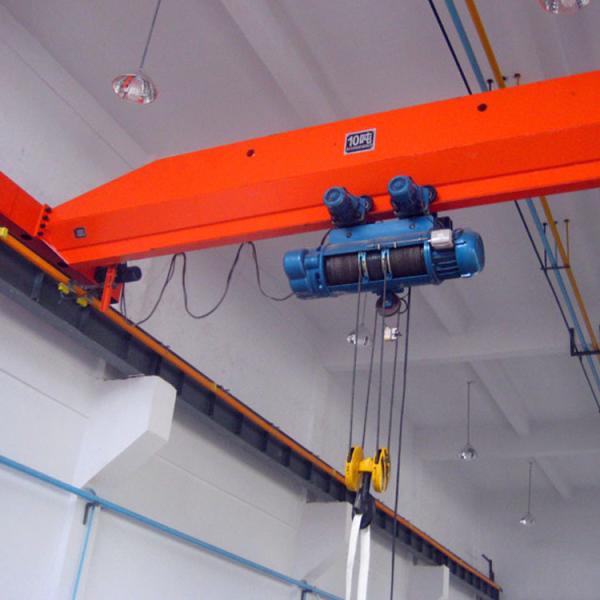

    Photos of 5Ton LDA Single Girder Overhead Crane with Electric Hoist


    Product configuration sheet of 5ton Single girder overhead crane with electric hoist for sales:
    Configuration details of the EOT Crane:
    Steel plateAnyang/ Handan Q235 steel
    Hoist lifting motorLarge starting torque conical rotor Squirrel cage motor with disc brake
    Trolley traveling motorSoft starting Squirrel cage with disc brake
    Crane traveling motorSoft starting Squirrel cage with disc brake
    Hoist lifting reducer3-level helical gear type, gear and axles are of alloy steel or quailty carbon steel,reducer cover is of cast-iron
    Trolley traveling reducerInvolute gear reducer LD type
    Crane traveling reducerInvolute gear reducer LD type
    Wheel

    50# steel forged wheel, Annealing to stress relief, mid-frequency quenching for tread and flange surface,low tempering

    After heat treated,Tread and flange surface hardness reach HB300~380

    BearingLuoyang
    BrakeBuilt in brake
    Wire ropeHigh strength wire rope 6x37+FC1770
    HookForged 20Mn high strength material forged hook
    Main Electrical partsSCHNEIDER
    Trolley power supplyFestoon cable
    Control modePendent line control
    Control panelYES
    Cable

    Crane industry special cable YC or YVFB type,

    bear temperature up to 60’C

    BufferHigh quality polyurethane buffer
    Painting

    Manual brush painting,One alkyd iron red primer painting,

    two alkyd orange enamel finish painting

    Safe features of the EOT Crane:
    Weight overload protection device
    Emergency stop system
    Over current Protection,Short-circuit Protection
    Phase sequence protection, Zero position protection,No-Voltage protection
    Mechanical interlock protection of controller
    Limit switch for crane long traveling
    Stopper and Limit switch for trolley cross traveling
    Lifting up and lower down limit switch
    High quality polyurethane buffer for crane long traveling protection

    Company Information:
    Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Container gantry crane/European type crane and hoist /Electric Winch,Jib crane,Scissor Lift/Crane components.
    Our company has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, ISO,CE etc certifications, cranes are exported to 120countries.
    In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works.
    Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
    Certifications:
    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications.
    We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production capacity and high quality cranes.
