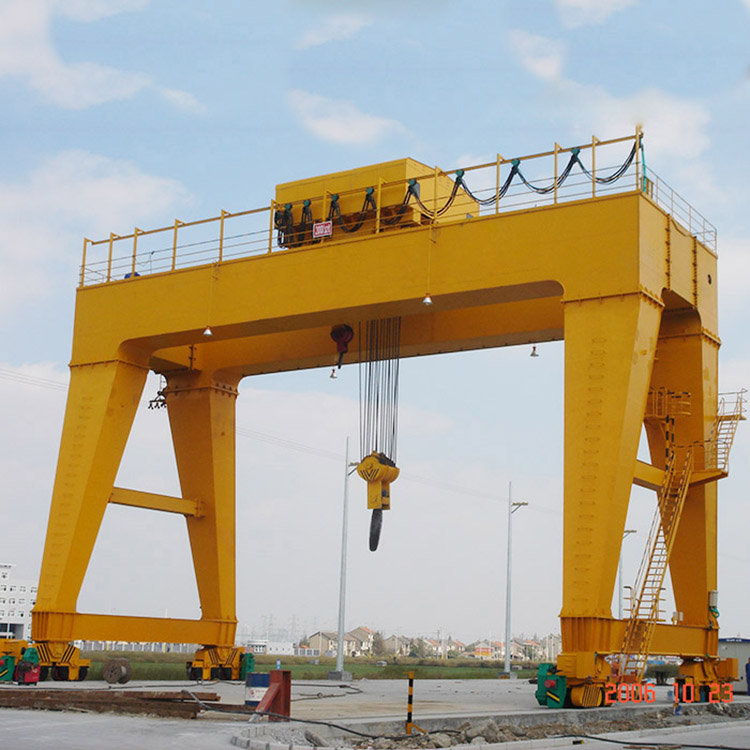

250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever

    Buy cheap 250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever from wholesalers

    Buy cheap 250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever from wholesalers
    • Buy cheap 250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever from wholesalers
    • Buy cheap 250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever from wholesalers

    250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever

    Ask Lasest Price
    Brand Name : Kuangyuan
    Model Number : MG
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100ets/month
    Delivery Time : 30working days
    • Product Details
    • Company Profile

    250 Tons Steel Plant Crane A Frame Double Beam Gantry Crane With Cantilever

    250 tons S20 MG Model A Frame Double Beam Gantry Crane With Cantilever
    Double beam gantry crane is mainly used for loading, unloading and transporting materials in open yard, and it is also the ideal necessary lifting machinery for highway bridge building, lifting bridge and shipbuilding, etc., and also suitable for loading, unloading and handling of industrial and mining enterprises and railway engineering.
    Product Structure:
    Lifting weight (t)101620/1032/1036/1650/10
    Span (m)18~3518~3018~35222622~3535

    Lifting height (m)


    Main hook11.510.5,1210.511.511.512
    Auxiliary hook11121213
    Speed (m/min)Main hook8.57.97.27.57.86
    Auxiliary hook10.410.410.510.4
    Trolley travel43.844.544.541.941.938.13
    Long travel37.6,4038,3638,364040,3838
    Product configuration:
    Product specfication:

    1. Double girder gantry Crane is widely used together with winch or trolley for lifting device. It is a medium and heavy size crane which travels in track.
    2. Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
    3. Its proper working temperature is -20--+40 centigrade.
    4 .MG double girder goliath crane is composed of main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.
    5. This product is a regular crane widely used in workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.
    6. Gantry lift has two control methods namely remote control and cabin control, or two control models together.
    7. Power is supplied by cable or slide wire.
    8. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
    9.Double girder gantry crane have A type, U type. U type is designed for container lifting. It could be designed with cantilever or not.
    10.The crane with three working class: A5, A6, A7. The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.

    Contact us:

    Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.
