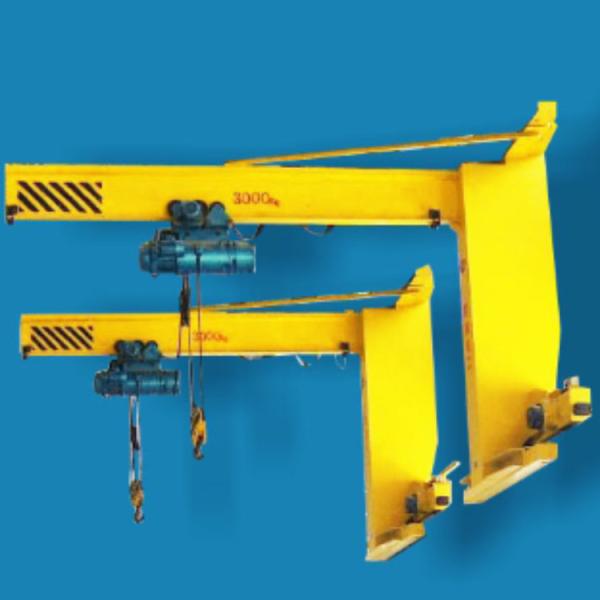

0.5/3 TON electric rotation 180 degrees wall traveling swing cantilever Jib Crane

Product introduction:

Wall travelling jib crane is a special hoisting equipment used in the workshop of machine manufacturing and assembling. It slides on the wall through the rail mounted on the wall of multilayer assembly shop; it can make the best use of the space structure of the workshop; saves the manufacture place and can operate flexibly . It has 2 kinds according to the primary structure member: single girder and double girder. The size of travelling rail can be designed according to the user”s requirements.

The power of crane is 220V~440V, 50Hz/60Hz.

Technical parameters:

Safety system :

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection,Zero position protection

Voltage loss protection

crane rotating stopper and cross traveling limit switch and stopper

Lifting overhigh and overlow limit switch

Installation Services:

Henan Mine Crane Co.,LTD crane could supply not only wall mounted jib crane but also the solutions, firstly, we will supply wall mounted jib crane design, wall mounted jib crane manual, wall mounted jib crane drawing, wall mounted jib crane wiring diagram, wall mounted jib crane electrical diagram and wall mounted jib crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,
