Product description:

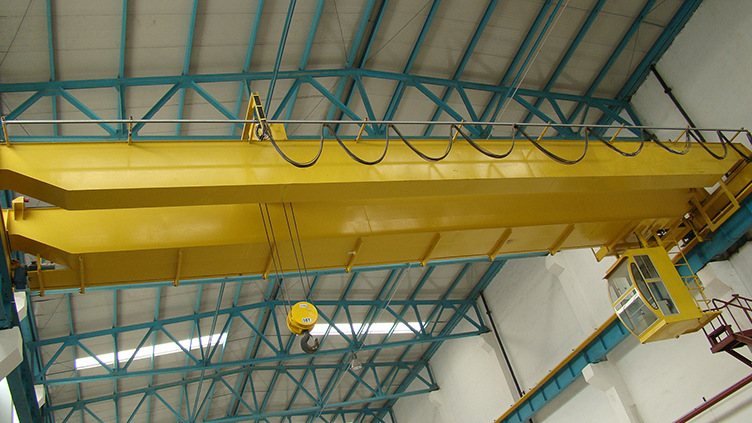

KSSL European double girder mobile EOT crane for workshop with high performance

Based on bringing in and assimilating foreign advanced technology,this type of crane takes modular design theories as guidance,uses modern computer technology as means,introduces optimized and reliable design methods,which is new type of crane made by employing import configuration,new material and technology and has features in light-weight,generalizing,energy- conservation and environmental protection,maintenance free and high technology content.

The European overhead crane is suitable for machinery manufacturing and assembly, petrochemical, warehousing and logistics, power construction, paper industry, railway and other industries.

The design of hoisting mechanism strictly carries out the relevant standards of FEM.

Features at a glance:

• Light weight and low headroom, effectively saving construction resources;

Compared with ordinary bridge cranes, the self-weight is reduced by 15~30%, the wheel pressure can be reduced by 15~30%, and its own height is also reduced by 20~30%;

• The hook limit is small and the working area is large;

The trolley adopts a compact design, and the hook lifts higher and is closer to the workshop track, which increases the working range of the hook in the workshop;

• Fewer transmission links, high transmission efficiency, and low failure points;

The hoisting unit adopts the form of direct connection, which reduces the transmission links, reduces the number of failure points, improves the transmission efficiency, and reduces the energy consumption of the crane;

• Using foreign high-quality parts and components, the maintenance workload is small;
• Frequency conversion speed regulation, smooth starting and braking, easy to use.

1.The running unit adopts three-in-one reducer motor, frequency conversion speed regulation, smooth starting and braking without impact.

2.The control system can adjust the acceleration and deceleration curve, more safe and easy to use.

• The hook has the function of putting swing, accurate positioning and efficiency.

1.Pulley set adopts rolled pulley with compact size, and the hook drifts small, with small swinging amplitude and good stability performance.

2.When working, the lifting weight has no sway, accurate positioning and automatic reset, which enhances the working efficiency and improves the working safety.

Components:

1.The main beam adopts the off-track box structure, and the end beam is connected with high-strength bolts, which is convenient for transportation. Specialized processing equipment ensures the precise connection of the main and end beams and makes the crane run smoothly;

2.Welding reel group is adopted, and the whole is annealed, and the wire rope tension directly acts on the trolley frame, and the force is good;

3.Wheel set are using 65Mn forged wheels, there are wear-resistant wheels, long service life, high installation accuracy, no rail gnawing in operation;

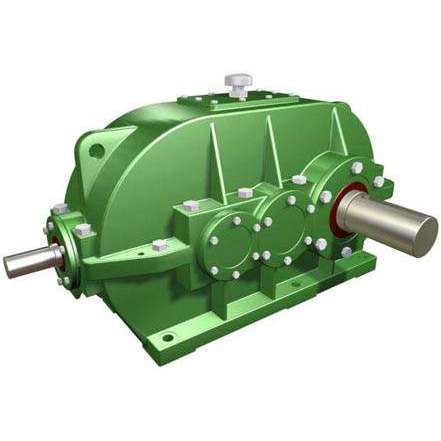

4.Reducer is Hard tooth surface reducer, so safer silent design, maintenance-free;

5.The cabin is spacious, wide field of vision, comfortable and safe;

6.Conductive system: the drag chain conducts electricity, protects the cable safely and reliably, and prolongs the service life;

7.Steel plate pre-treatment: leveling, shot blasting, primer spraying, CNC blanking, integral processing of trolley frame and end beam, make errors reduce and high installation accuracy of each component.

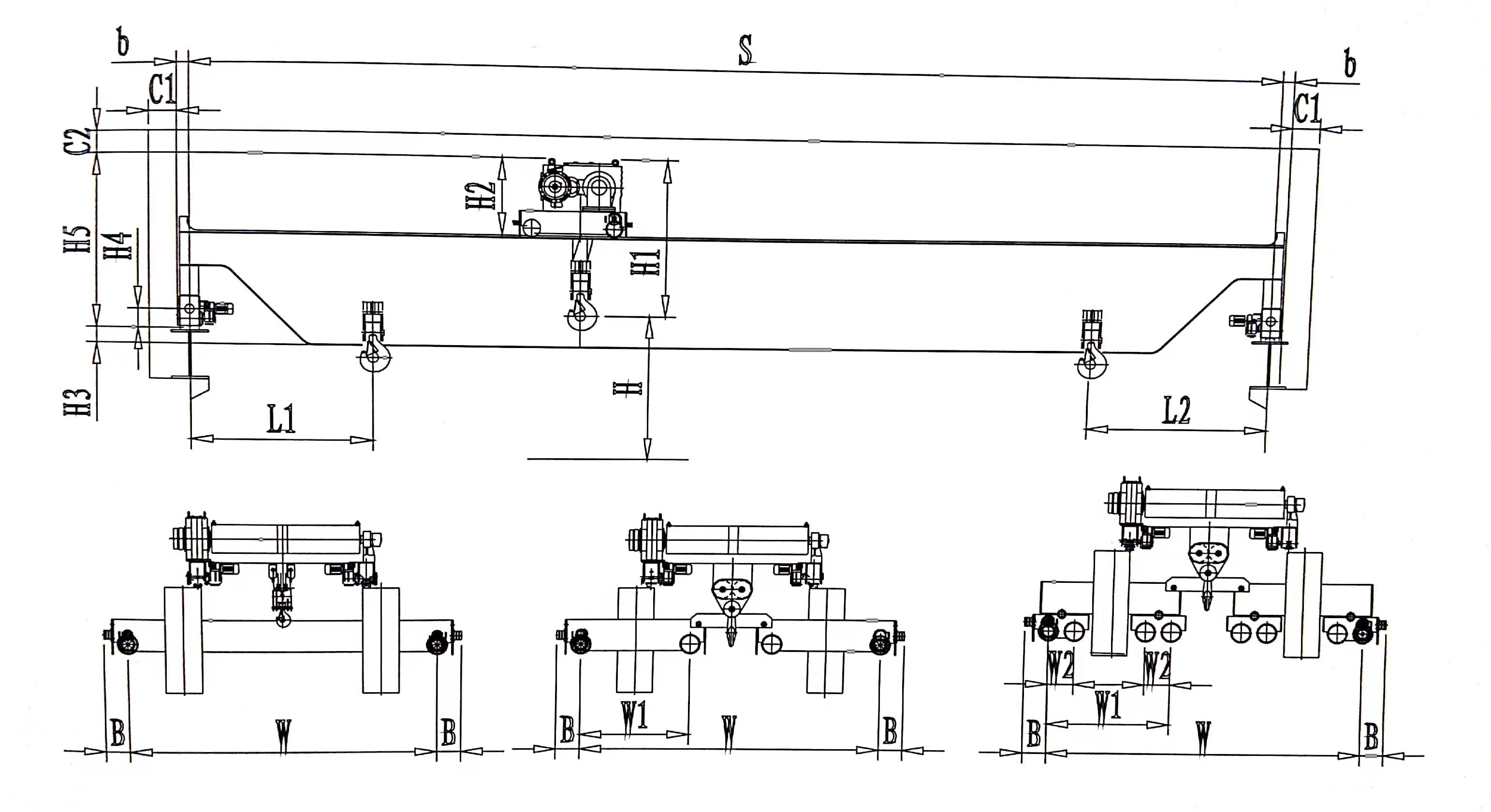

Product specification:

(Selection description:)

1. This crane series only lists the commonly used cranes with basic specifications, the standard span when the working level is A5, and the cranes for indoor use without auxiliary hooks.

2. This series can also increase the auxiliary hoisting mechanism, and can also increase the setting of doubling the speed at light load;

3. The dimensions, weights and wheel pressures in the table are for the reference of customers when ordering. If the conditions need to change, you could provide your customized demands;

4. The lifting speed and the speed of crane and trolley in the table are standard values, which can be adjusted according to customer needs.

FAQ & CONTACT US:

1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams.
You are also warmly welcomed to our factory to make the inspections.
Meanwhile, also support live factory view & crane inspection.

2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.

3Q: What's your warranty period?
A: 18 months for cranes accepted.

4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.

5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.

6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is famous international brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
