    High Level Slewing Overhead Crane Telescopicel Ectromagnetic With Carrier Beam

    Ask Lasest Price
    Brand Name : KUANGYUAN
    Model Number : QCL
    Certification : CE ISO GOST
    Price : USD 10000-45000
    Payment Terms : L/C, T/T
    Supply Ability : 30000 sets per year
    Delivery Time : 45~65 days
    • Product Details
    • Company Profile

    High Level Slewing Overhead Crane Telescopicel Ectromagnetic With Carrier Beam

    PRODUCT DESCRIPTIONS

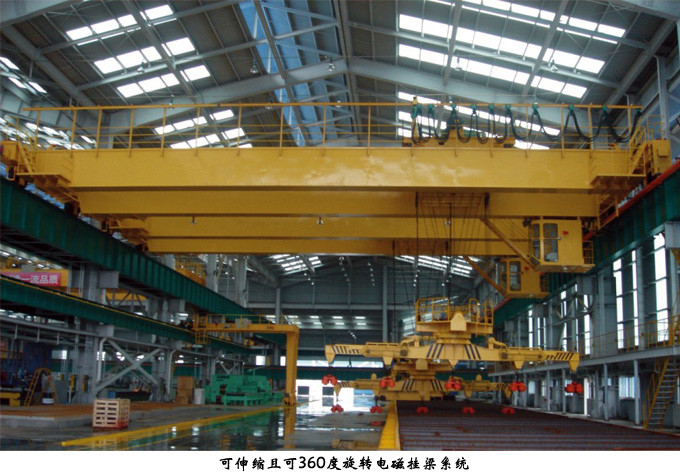

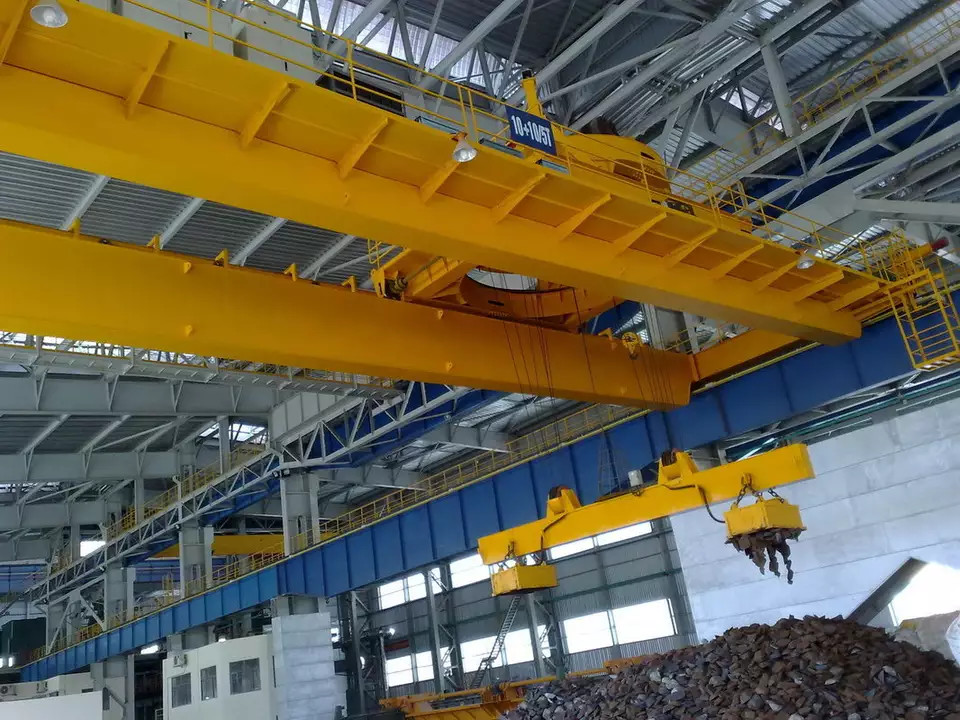

    Low/High level slewing telescopicel ectromagnetic overhead crane with carrier-beam
    This type crane has slewing telescopic electromagnetic carrier-beam ;is applicable to the fixed span at indoors or outdoors of steel mill,shipyard,port,yard and storage,etc. It is used for loading ,unloading and carrying steel plate ,profile steel ,and spool. etc. It is applicable to lift material of different specifications and winch needs horizontal rotation.The lower part of the carrier--beam can bring special lifting applicances,such as magnetic chuck and tongs,etc.

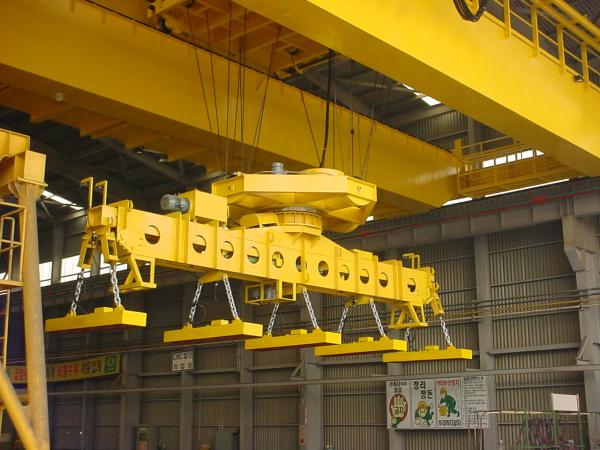

    The spacing of electromagnet can be adjusted electrically and magnetic force of electromagnet can be adjusted through infinitely variable control according to the specifications(different thickness,length and pieces)and weight of the lifted materials. The following can be supplied according to the users ' requirements:speed governing(1:10 or larger)of the mechanisms.overload & warning,remote control,PLC control,failure detection,display ,record and printing system,etc.
    High Level Slewing Overhead Crane Telescopicel Ectromagnetic With Carrier BeamHigh Level Slewing Overhead Crane Telescopicel Ectromagnetic With Carrier Beam
    PRODUCT CONFIGURATION
    Main features:
    1).Heavy duty slip ring motor, IP54 or IP55, insulation class F or H, soft starting and smooth running.2). Wheels, wire rope drum,
    gears, couplings are processed by CNC machine center, Top quality control.
    3). Siemens or Schneider main electrical parts are used for durable and safe operation.

    Safety device:
    1). Weight overload protection device.
    2). Lifting limit switch and traveling limit switch.
    3). Emergency stop system.
    4). Zero voltage protection.
    5). Phases protection device and so on
    6). Top quality long time bearing polyurethane materials buffer.
    PRODUCT SPECIFICATIONS
    Low Level Slewing
    Technique paremeters
    净起重量clean weightt152530
    工作级别working classA6
    跨度spanm34.346.353.3
    最大起升高度Max.lifting heightm5.55
    速度Speed起升hoistingm/min12.211.812
    运行travelling小车运行travelling of crab38.73840.8
    大车运行travelling of trolley82.5
    挂梁Hang beam旋转Revolver/min1
    伸缩Flexiblem/min5,10
    荐用钢轨Steel track recommendedQU100
    电源power source380V 50Hz 3-Ph AC

    High Level Slewing
    Technique paremeters
    起重量lifting weightt5+510+1016+1625+25
    工作级别working classA6A7A6A6
    跨度spanm28.525, 3425, 3325
    最大起升高度Max.lifting heightm121610, 1610
    速度Speed起升hoistingm/min12.412.614.8, 1615.4
    运行travelling小车运行travelling of crab44.242.239, 4840
    大车运行travelling of trolley10285.2101, 106107
    挂梁Hang beam回转Turn roundr/min151.361.36, 1.851.4
    荐用钢轨Steel track recommended43kg/mQU80QU100
    电源power source380V 50Hz 3-Ph AC

    FAQ&CONTACT US
    1Q: How can you ensure the quality?
    A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection.

    2Q: What's your delivery period?
    A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
    3Q: What's your warranty period?
    A: 18 months for cranes accepted.
    4Q: Do you have engineer oversea installation service?
    A: Yes, we could provide the crane supervision, installation, commissioning & training.
    5Q: What kinds of products do you have?
    A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
    6Q: Could we buy spare parts in local once they are out of work?
    A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
    7Q: Do you provide lift tools or crane parts?
    A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
