Description:

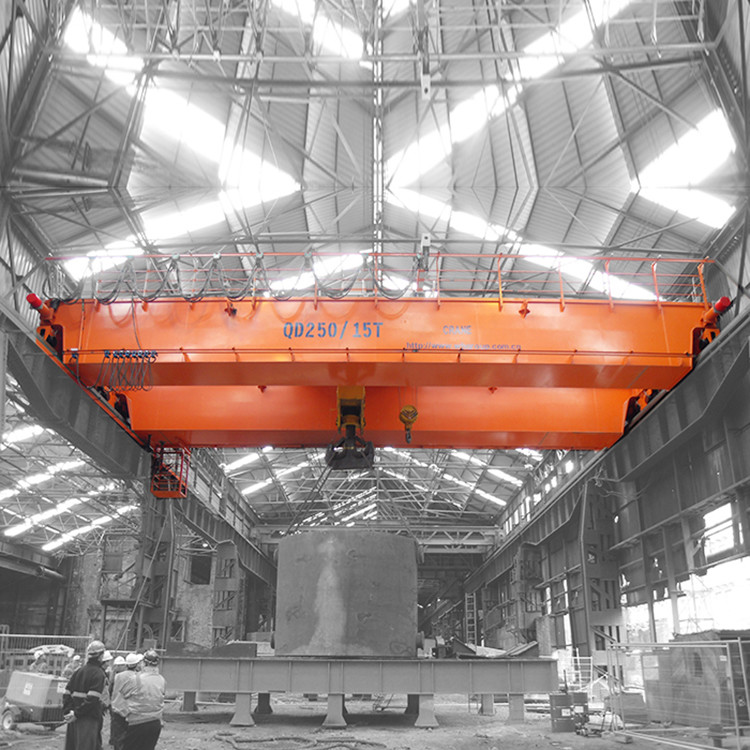

Double girder overhead crane is composed with double girder frame, crane traveling end truck, and the top running trolley with lifting and travelling device. The motors, reducers and brakes in this model crane lifting and traveling mechanism are separate parts, which makes the crane higher working duty from A3~A8 (ISO) and faster lifting and traveling speeds.

The cranes standard speeds are adjustable, which allow the crane adjust its speed under 2~3 grades. The crane could also be equipped with frequency inverter, which makes the crane speeds adjusted under 10 grades speeds. It could move very slow which makes it possible to do very accurate works.

This model overhead crane is designed under GB regulation, passed ISO, CE certification.

The crane lifting and travelling speeds are steady and accurate.

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe

Product Parameters:

Detail Photos:

Design standard:

1. Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-2005

2. Crane test specification and procedures GB/T5905-1986

3. Crane electric control equipment JB/T4315-1997

4. Important application wire rope GB8918-2006

5. Carbon structure steel GB/T700-2006

6. Low alloy high strength structure steel GB/T1591-2008

7. Welding joint radiographic inspection standard JB928-1994

8. Steel welding joint manual ultrasonic flaw detection way GB11345-1989

Installation service

Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions. Firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.
