QL type EOT crane with rotationable hanger beam customzied various lifting tools

QL type rotating hanger girder EOT mobile crane is one of the derivative categories of general-purpose overhead travelling crane, which is one of the mechanical equipment for short-distance material handling in modern industrial production. It is widely used in workshops, warehouses and other places, which greatly reduces the physical labor intensity and improves the production efficiency.

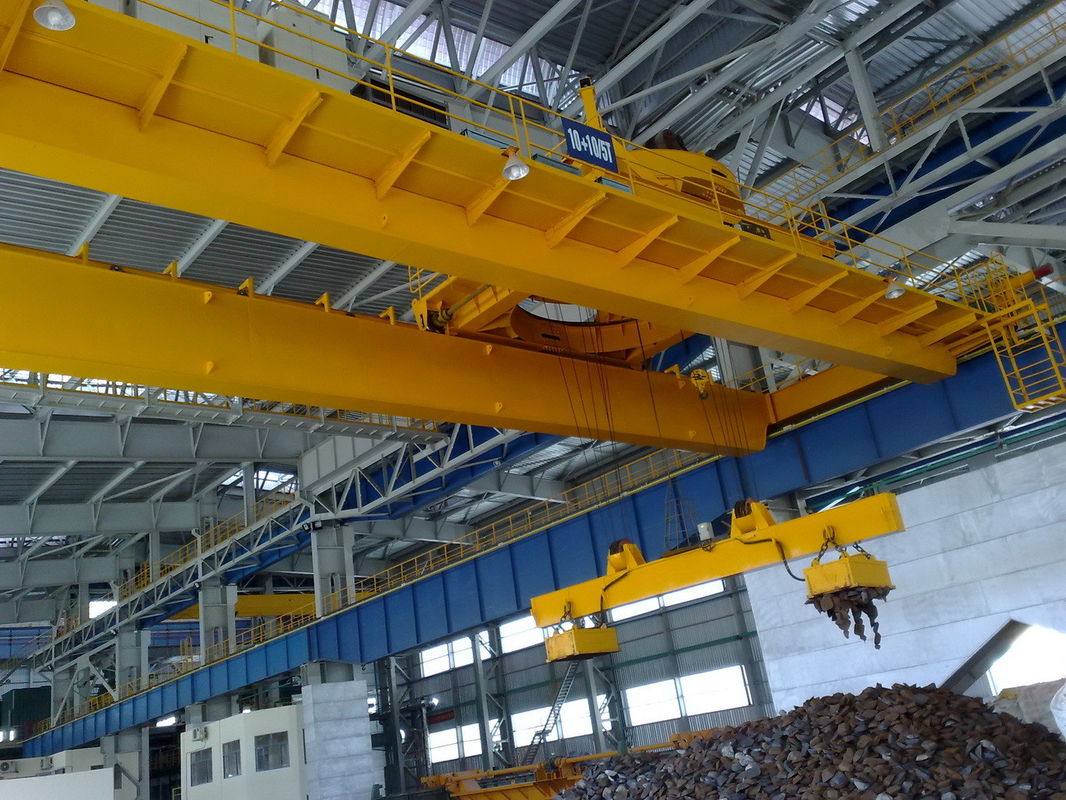

Equipped with rotatable hanger beam, this crane is suitable for fixed span indoors or in the open air, such as steel mills, shipyards, ports, yards and warehouses, for loading, unloading and transporting steel plates, sections, coils and other materials. It is especially suitable for lifting different specifications and occasions requiring horizontal rotation. The hanger beam is cross structure, reliable and safe with certain function of putting swing. It can carry special lifting tools such as electromagnets or clamping pliers under the hanger beam.

It is usually composed of metal structure, lifting trolley (hanger beam), trolley operating mechanism and electrical control. While on the lifting beam, the lifting mechanism drives two roller sets, and after decelerating through two reducers, the lifting and lowering of the hanger beam is completed under two hooks, so as to realize the purpose of lifting materials. All mechanisms can be controlled by cabin or wireless remote control ways.

The ambient working temperature of the crane is generally between -20~40℃, which is not suitable for use in places with strong corrosive gas and flammable and explosive places. When used in the open air, it must be equipped with rain-proof equipment.

Classification:

According to the way of hanging electromagnets, the electromagnetic bridge crane can be divided into upper rotating hanger beam electromagnetic bridge crane and lower rotating hanger beam electromagnetic bridge crane.

The upper rotating one has two hanging ropes to lift the hanger beam, and there are electromagnets installed below the hanger beam for lifting magnetic materials.

The lower rotating one has only one hanging rope, and a rotatable hanger beam is suspended, and there are electromagnets installed below the hanger beam for lifting magnetic materials.

In general, magnetic materials include steel plates, sections, coils and other materials. According to the user's requirements, there are optional configurations: speed regulation of every mechanism (1:10 or greater), overload and alarm, wireless remote control, PLC control and fault detection, display, recording and printing system, etc.

Product specification:

The hanger beam one:

The upper revolving one:

The lower revolving one:

Delivery & Package:


Photos for reference:





Company strength:





FAQ & Contact us:

Hi, firstly let us introduce our company as follows:

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
