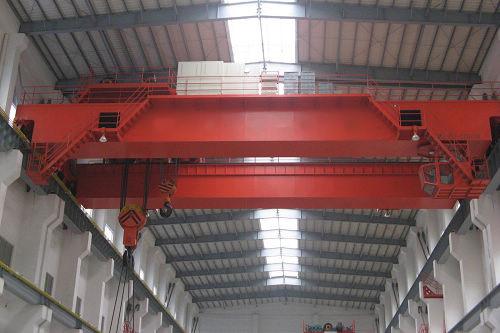

    QD Type Double Girder Electric Hook Bridge Crane For General Industry 9.8m/Min

    Ask Lasest Price
    Brand Name : KUANGYUAN
    Model Number : QD
    Certification : ISO CE GOST
    Price : USD 174580-274000
    Payment Terms : L/C, T/T
    Supply Ability : 3000 sets per year
    Delivery Time : 55~85 work days
    • Product Details
    • Company Profile

    QD Type Double Girder Electric Hook Bridge Crane For General Industry 9.8m/Min

    125~450t QD type double girder electric mobile hook bridge crane for general industry


    Product Description :
    Hook bridge crane is a general bridge crane which is widely used in the lifting machinery.Its lifting capacity is from 5tons to 450/80tons,and its working duty is A3~A8 according to the frequency of usage.It is suitable for loading, unloading and hoisting work in factories, warehouses and freight yards where the ambient temperature is -20℃~40℃ and the relative humidity is not more than 85%. It is forbidden to work in the environment of flammable, explosive and corrosive gas.(Application)


    Configuration:

    QD type hook crane is mainly composed of a box-shaped bridge,a trolley traveling mechanism, a crane traveling mechanism and an electrical control system. The lifting mechanism is a hook.

    Track is laid on the main beam for the trolley to move laterally along the direction of the main beam. The main girder is welded with the box-shaped end girder, and the end girder is arranged with joints, bolts or pin connections for the crane to be disassembled and transported.

    The control method has three ways mainly: pendant line button control, wireless remote control and aerial cabin control, generally standard way is cabin control.

    There are two types of cabin : open and closed, with adjustable seats, insulating pads on the bottom plate, and tempered glass for window glass. Air conditioners, sounders, walkie-talkies and other items can be configured according to users’ requirements.


    Product specification(customizable) :


    Item125/32160/50200/50250/50300/40350/75
    lifting capacity(t)main hookA5125160200250300
    A6125200350
    aux.hookA53250505040
    A6325075
    span(m)13~311722
    lifting height(m)main hookA52030222824
    A6203225
    aux.hookA52232263232
    A6223240
    working dutyA5,A6A5A5,A6A5A5A6
    lifting speed(m/min)main hookA54.43.72.82.30.84
    A64.43.11
    aux.hookA59.49.89.89.85.8
    A69.49.85.22
    traveling speed(m/min)trolleyA541.42828288.1
    A641.4285.8
    craneA578,6868,6666,584317.7
    A678,6858,4322
    steel track recommendedQU100QU120
    power supply380V 50Hz 3-Ph,AC

    lifting capacity(t)main hook400450
    aux.hook8080
    span(m)2120.8
    lifting height(m)main hook2525
    aux.hook3033
    working dutyA1-A3
    speed(m/min)main lifting1.1650.895
    aux lifting4.784.84
    trolley traveling55.1
    crane traveling3020
    steel track recommendedQU120
    power supply380V 50Hz 3-Ph,AC

    Sketch:



    Photos just for reference:



    Company Strength:



    FAQ & CONTACT US:


    Customized as the following technical parameters for your checking
    lifting capacity? tons
    lifting height? meters(it is the distance from center of hook to floor)
    lifting speedsingle or double or VVVF?
    span? meters(it is center to center distance between railways)
    power supply380V50Hz3-Ph,AC?
    control methodpendant line control or wireless remote control or cabin control?
    Do you also need us to supply rail and bus bar: YES or NO?
    If yes, could you tell me the crane traveling length is ? meters;
    What metarials to lift?
    Usage: general industry ? Indoor or Outdoor ?
