    10 Ton Trussed Type Automated Rail Mounted Gantry Crane Electric Single Girder

    Ask Lasest Price
    Brand Name : Kuangyuan
    Model Number : MH
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, Western Union, MoneyGram
    Supply Ability : 4000 sets per year
    Delivery Time : 40working days
    • Product Details
    • Company Profile

    10 Ton Trussed Type Automated Rail Mounted Gantry Crane Electric Single Girder

    10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane

    Product Description of 10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane :
    10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane is a small and medium-sized lifting equipment running on rails, which is mainly composed of gantry frame (main beam, support leg, ground beam, etc.), lifting mechanism, running mechanism and electronic control system.

    It takes electric hoist as lifting mechanism and runs along the lower flange of main beam I-steel when working.

    This door frame structure is trussed type, box technology is good, easy to make; The trussed type has light weight and less wind resistance.


    The machine has the characteristics of light weight, simple structure, convenient installation and maintenance, etc. It is suitable for general loading and unloading and lifting operations of small and medium-sized lifting operations in factories, mines, freight yards, and warehouses.

    Painting: Manual painting to ensure uniform coating thickness and high adhesion


    Product Technical parameters of 10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane :
    Span/m10-40
    Lifting height/m6/12/18
    Working classA3/1bM
    Lifting speed/m/min7
    Trolley running speed/m/min20
    Crane running speed/m/min20

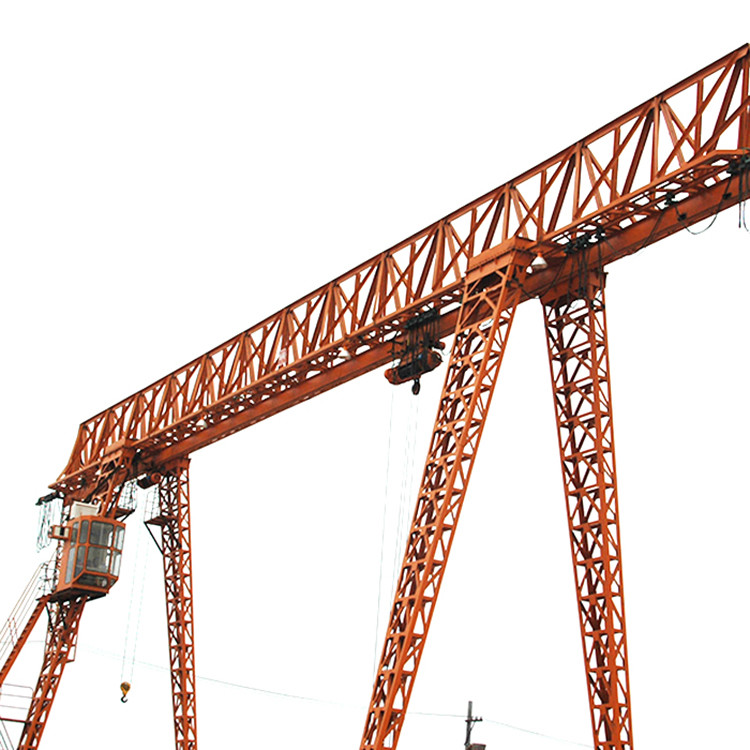

    Product photo of 10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane :

    10 Ton Trussed Type Automated Rail Mounted Gantry Crane Electric Single Girder

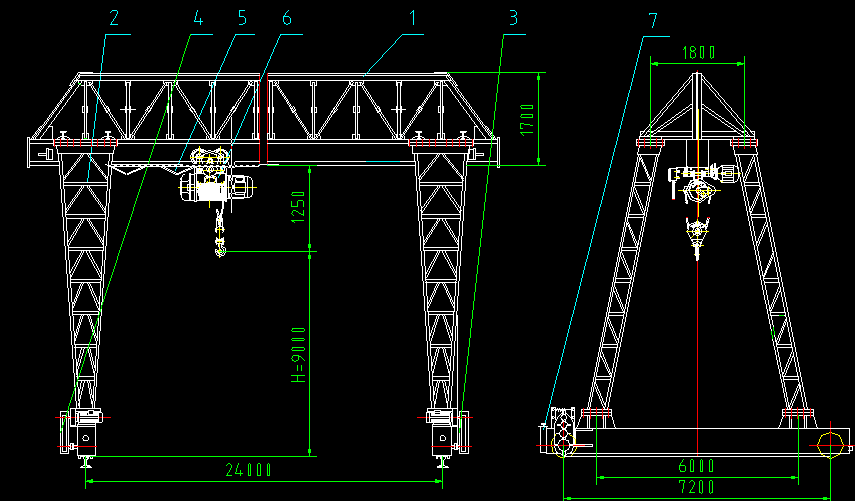

    Product sketch of 10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane :

    Main Features of 10Ton Trussed Type MH Model Rail Mounted Electric Single Girder Gantry Crane :


    1.It has main beam,legs,ground beam,lifting mechanism,electric controlsystem.

    2.Its structure type is trussed type,Simple and compact structure, steady performance.

    3.Lifting unit is electric Hoist,capacity 10ton

    4.Motor protection class IP44,IP54,IP55,Motor insulation class F,H

    5.Control mothod:Pendent control ,cabin control or remote control.

    6.Working environment tempetature:-20'C~40'C.

    Attention:

    Safety is the most important issue for cranes. To ensure safety, it is forbidden to use the equipment in flammable, explosive or corrosive environments. (Explosion-proof type is required for this).

    Company Information:
    Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Container gantry crane/European type crane and hoist /Electric Winch,Jib crane,Scissor Lift/Crane components.
    Henan Mine Crane has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, ISO,CE etc certifications, cranes are exported to 120countries.
    In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works.
    Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
    Certifications:
    We have passed CE, GOST, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
