    10t Single Girder Gantry Crane

    Ask Lasest Price
    Brand Name : Kuangshan
    Model Number : MH
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100Sets/month
    Delivery Time : 30 Work Days
    • Product Details
    • Company Profile

    10t Single Girder Gantry Crane

    10t Mobile Single Girder Gantry CraneMobile for outdoor freight yards


    Product introduction

    MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.

    The working class is A3,wheel diameter Ø400mm, motor class IP44 IP54 IP55,Schneider main electrics,pendent line control or remote control or cabin control.

    Technological parameter:

    MechanismItemUnitDescirptions
    Lifting Weigheton10
    Lifting heightm9
    Spanm12
    Working environment~25-40
    SpeedHoistingm/min7
    Cross travelingm/min20
    Long travelingm/min20
    Workiong classA3
    Power supplyAC 380V 50Hz three-phase
    Wheel diameter∅400
    MotorLiftingKwZD151-4/13
    Cross travelingZDY121-4/0.8*2
    Crane travelingKwZDR112L-4,2*2.1

    Main features of 10t Span12m Height 9m MH Electric Hoist Door Crane

    1.Simple and compact structure, steady performance.

    2.Easy to operate,high efficiency.

    3.Overload, low voltage protective device.

    4.Pendent control and remote control.

    5.Easy to install and low cost maintenance.

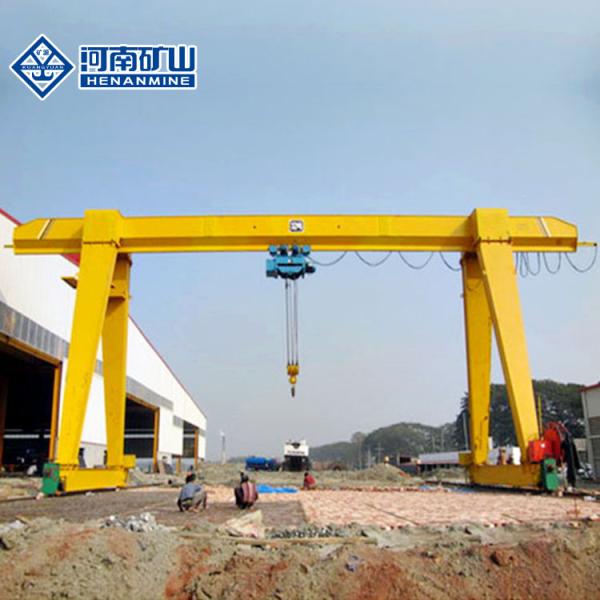

    Photos of 10t 7m/min Span12m Height 9m MH Electric Hoist Door Crane:

    10t Single Girder Gantry Crane10t Single Girder Gantry Crane

    Sketch:
    MH


    Attention:

    Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

    Main Parts of MH model gantry Crane:

    .jpg
