Factory Outlet 3T Single Girder Overhead Crane Electric Traveling Rail Crane

product description of Single Grider Overhead Bridge

LDA model single girder EOT crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3 A4. Working environment temperature is -20°C to 40°C.

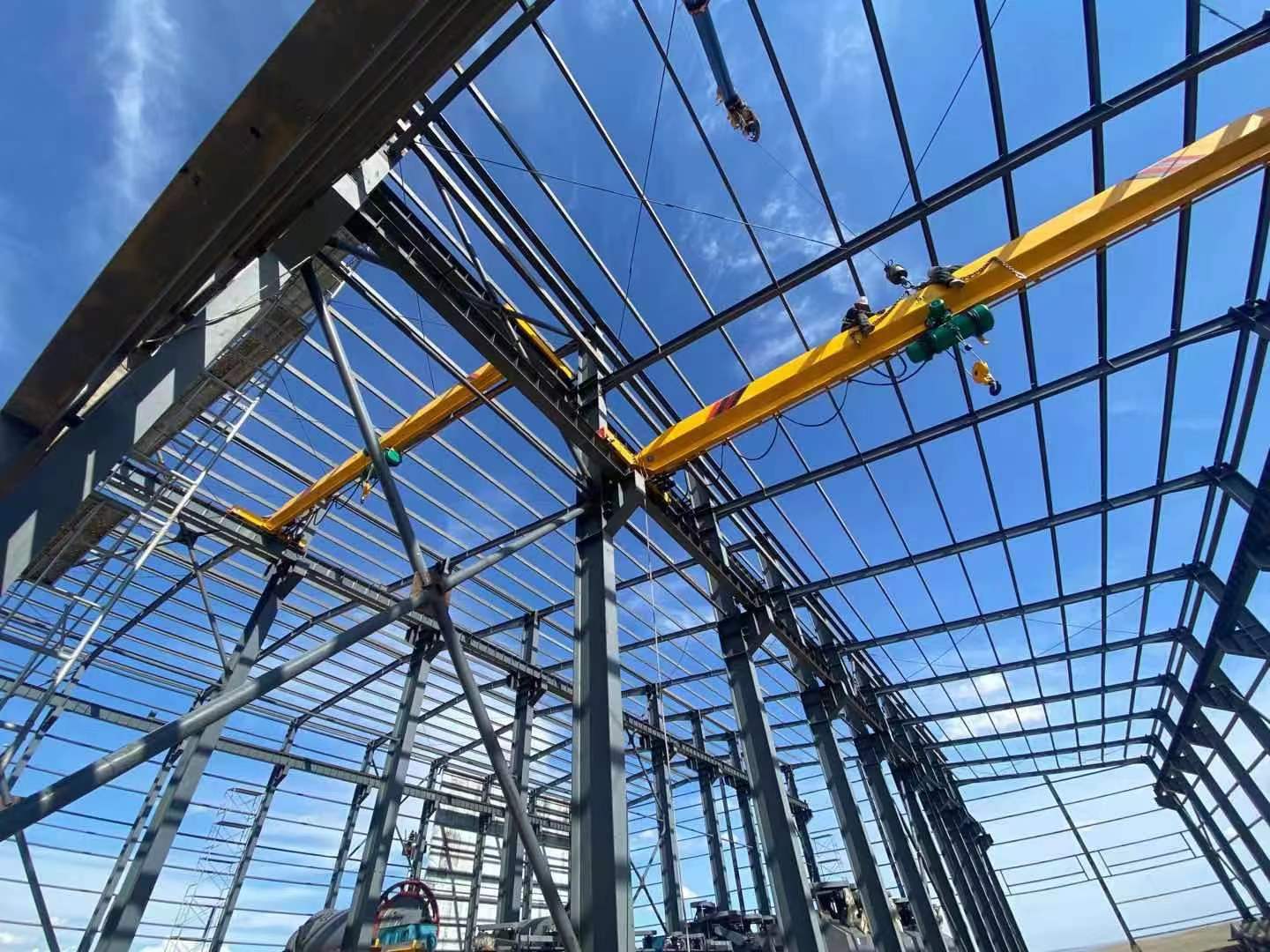

LDA model single girder EOT crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.

LDA model single girder EOT crane is matched with electric hoist which is CD model or MD model.

It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Safety System:

Weight overload protection device,

Top quality long time bearing polyurethane materials buffer,

Crane traveling limit switch, Voltage lower protection function,

Emergency stop system, Current overload protection system and so on.

Main Features of Single Girder Overhead Bridge Crane:

1). Single welding box girder

2). DIN/FEM standard deflection

3). Whole length CNC cutting for complete web plate, high deflection accuracy

4). High quality automatic welding and NDT inspection

5). Shot-blasting Sa2.5 for complete girder after welding, stress release

6). High tension bolts mounting between girder and legs, life time safety connection

7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55

8). High protection class IP55, F class, 40% ED

9). Excellent driving properties, stepless control, smoothly moving

10). All hoist and crane movements are independent and can be run simultaneously.

Product Parameterof Single Grider Overhead Crane

There are only some common models of multifunction electric Single Girder Overhead Crane in the table, and various other models and parameters of multifunction electric Single Girder Overhead Cranes can be produced through customized design.

Delivery Photos

When you send us inquiry, plese try to give us the basic technical data as fellow:

Hi, firstly let us introduce our company as follows:

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
