    Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System

    Ask Lasest Price
    Brand Name : Kuangshan
    Model Number : QDY
    Certification : ISO, CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100ets/month
    Delivery Time : 30working days
    • Product Details
    • Company Profile

    Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System

    Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System


    Product Description Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System:


    The Schneider Brand Metallurgy Meltshop's 70-Tone Bridge program is made on the frame of a box, bridge, crateboard and electric system. The main anchor uses a load tool as a lifting tool to lift the steel ladle, the auxiliary hook works with a large hook to achieve the pouring of cast iron and slag of steel, and other auxiliary materials. of the main routes such as hiking, trolley, and crate. We can also choose the right rate under the customer's needs.


    Product Structure Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System:


    Lifting weight

    Primary handcart

    T

    100

    Secondary handccart

    30

    Span


    16

    Lifting height

    Primary handcart

    M

    18

    Secondary handccart

    19

    Working class

    A6

    Speed

    Lift

    Primary handcart

    m/min

    7.54

    Secondary handccart

    8.93

    Travel

    Primary handcart


    35.08

    Secondary handccart

    42.44

    Motor

    Lift

    Primary handcart

    Type/kw

    YZR355M-10/90×2

    Secondary handccart

    YZR280M-10/55

    Travel

    Primary handcart

    YZR160L-8/9×2

    Secondary handccart

    YZR160M1-6/6.3

    Cart

    YZR225M-8/22×4

    Weight

    Primary handcart

    T

    66

    Secondary handcart

    10.25

    Cart

    173

    Max wheel pressure

    KN

    520

    Steel track


    QU120

    Power supply


    3-phase A.C. 50Hz 380V


    Sketch of Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System:

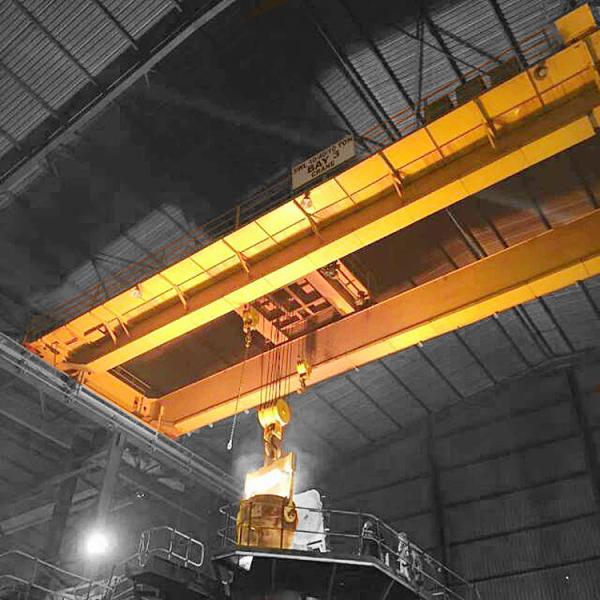

    Pothos of Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System:



    Product Details of Schneider Brand Metallurgy Meltshop Casting 70 Ton Bridge Crane System:

    Main Parts of QDY Ladle crane:

    Working condition:

    1.Working tempreture:-10~+60°C,
    2.Work class:A6-A8,
    3.Power Source:3ph,380V,50HZ or other under customer requirement.

    Safety feature:

    1.Weight overload protection device,
    2.Top quality long time bearing polyurethane materials buffer,
    3.Crane traveling limit switch, Voltage lower protection function,
    4.Emergency stop system,
    5.Current overload protection system and so on!

    Design and Development:

    We strongly believe in Design and Development for the improvement of the products to save power and money. We have a wonderful team for Quality Assurance and set to achieve higher goals and conquer new horizons.
