5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane

    Buy cheap 5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane from wholesalers

    Buy cheap 5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane from wholesalers
    • Buy cheap 5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane from wholesalers
    • Buy cheap 5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane from wholesalers

    5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane

    Ask Lasest Price
    Brand Name : kuangshan
    Model Number : QDY
    Certification : ISO, CE
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100ets/month
    Delivery Time : 30working days
    • Product Details
    • Company Profile

    5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane

    5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane

    Product Description:

    Kuangshan QDY Metallurgy Meltshop Double beam Girder Overhead 70ton Casting Bridge Crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.


    Product Structure:
    Lifting weightPrimary handcartT100
    Secondary handccart30
    Span16
    Lifting heightPrimary handcartM18
    Secondary handccart19
    Working classA6
    SpeedLiftPrimary handcartm/min7.54
    Secondary handccart8.93
    TravelPrimary handcart35.08
    Secondary handccart42.44
    MotorLiftPrimary handcartType/kwYZR355M-10/90×2
    Secondary handccartYZR280M-10/55
    TravelPrimary handcartYZR160L-8/9×2
    Secondary handccartYZR160M1-6/6.3
    CartYZR225M-8/22×4
    WeightPrimary handcartT66
    Secondary handcart10.25
    Cart173
    Max wheel pressureKN520
    Steel trackQU120
    Power supply3-phase A.C. 50Hz 380V

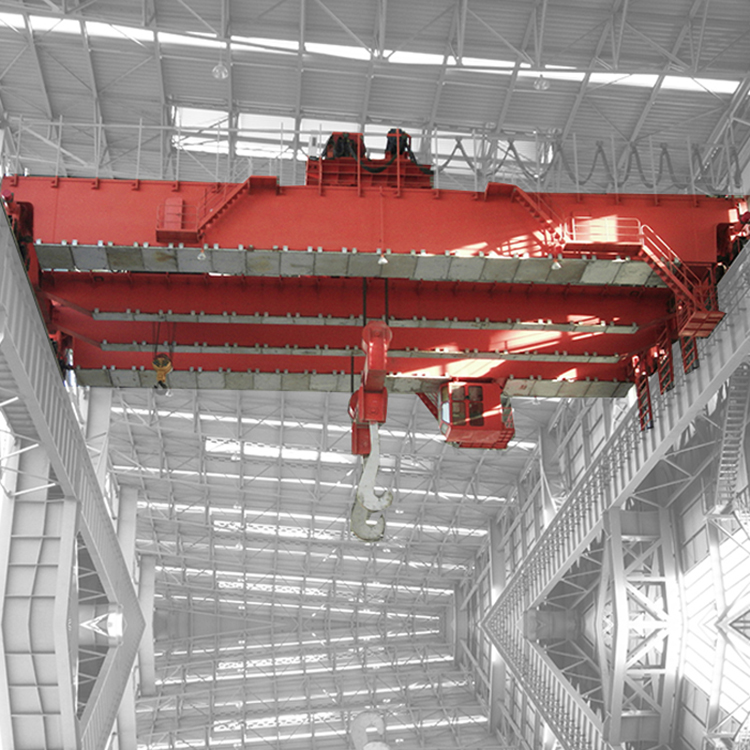

    Pothos of Kuangshan QDY Metallurgy Meltshop Double beam Girder Overhead 70ton Casting Bridge Crane:

    Product Details:

    Main Parts of QDY Ladle crane:

    Working condition:

    1.Working tempreture:-10~+60°C,
    2.Work class:A6-A8,
    3.Power Source:3ph,380V,50HZ or other under customer requirement.

    Safety feature:

    1.Weight overload protection device,
    2.Top quality long time bearing polyurethane materials buffer,
    3.Crane traveling limit switch, Voltage lower protection function,
    4.Emergency stop system,
    5.Current overload protection system and so on!

    Certifications:
    We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
