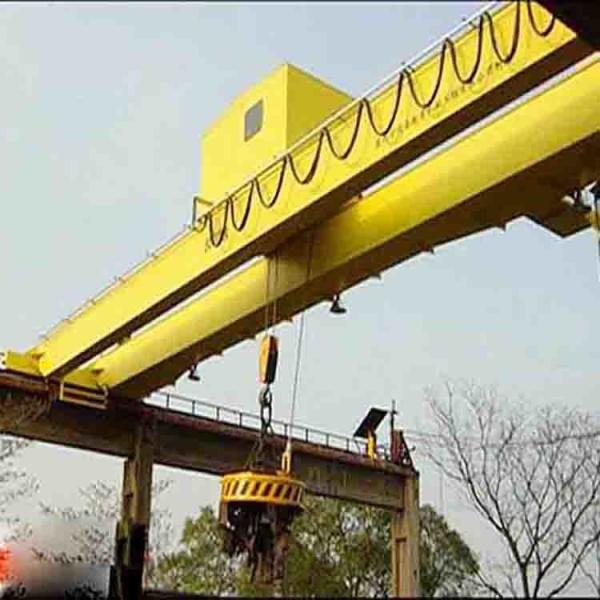

QC Model double girder electric overhead traveling Magnet Crane
Production introduction:
1. QC model double girder electric overhead traveling Magnet
Crane,the lifting unit is magnet,which hungs on the hook. It is
usually to be used to lift steel scraps,steel billet,rebar
bundle,etc. It mainly consists of lifting trolley,bridge frame,long
traveling unit,hook and wirerope,magnet system, cabin and electric
control system,etc.
It has reasonable structure,light dead weight,low noise,easy
operation and maintenance,low maintenance frequency and
cost,superior performance,long service life.
Normal capacity are 5t,10t,16t,16/3.2t,20/5t,32/5t,the span is
10.5m-31.5m, lifting height 16-20m, working class is A6.
Control model: cabin control.
And ambient temperature normally not more than 45ºC.
Technical parameters:
| Lifting weight(t) | 5 | 10 | 16 | 20 |
| Span(m) | 10.5~31.5 |
| Max Lifting height(m) | 6~30 |
| Working class | A6,A7 |
| Speed(m/min) | Main Hoisting | 12.9,15.66 | 10.4,15.3 | 10.4,13.3 | 8.6,9.8 |
| Speed(m/min) | Trolley Cross Traveling | 43.8,44.6,42.4 |
| Speed(m/min) | Crane Long Traveling | 70,80 |
| Motor Type | Heavy Duty Slip ring Motor |
| Motor (Kw) | Main Hoisting | 26,30 | 34,45 | 42,55 | 63,90 |
| Trolley Cross Traveling | 2.5,4,6.3 |
| Crane Long Traveling | 2*4,2*5.5,2*7.5,2*8.5,2*11 |
| Control mode | Pendent line control,Remote control,Cabin control |
| Recommended Rail model | 38kgs/m,43kgs/m,QU70 |
| Power source | 3Ph A.C 50Hz 380V |
Safe system
Weight overload protection device
Emergency stop system
Over current Protection, Short-circuit Protection
Phase sequence protection
Zero position protection, No-Voltage protection, convenient and
simple operation.
Protective earth conductor is fitted as standard
Voltage lower protection system
Current overload protection system
High protection level IP44,IP54,IP55
Long and cross travel limit switch
Anti-falling protection of trolley and crane prevents from
accidental falling
High quality long time bearing polyurethane materials buffer fixed
at the end of trolley travelling and crane travelling to prevent
over traveling
Safety hook latch used for avoiding the lifted material out off
from the hook
Audible and visual alarm device to inform the person stay near by
the travelling crane
Rain Cover for lifting mechanism of outdoor cranes, electric
cabinet and driving mechanism
Design standard
Crane design standard GB 3811.
General Purpose Overhead Crane design standard GB/T14405
Manufacturing and tolerances of rail installation GB/T10183.
Crane wheel standard:JBT 6392
Crane test specification and procedures GB/T5905.
Crane electric control equipment JB/T4315.
Important application wire rope GB8918.
Carbon structure steel GB/T700.
Low alloy high strength structure steel GB/T1591.
Welding joint radiographic inspection standard JB928.
Steel welding joint manual ultrasonic flaw detection way GB11345.
FAQ
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more
appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port
crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your
material handling equipment up and running and have been providing
our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
Q6: Can this type work in hazardous environment?
A7: Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
Q8: Can you provide the various lifting tools?
A8: Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
