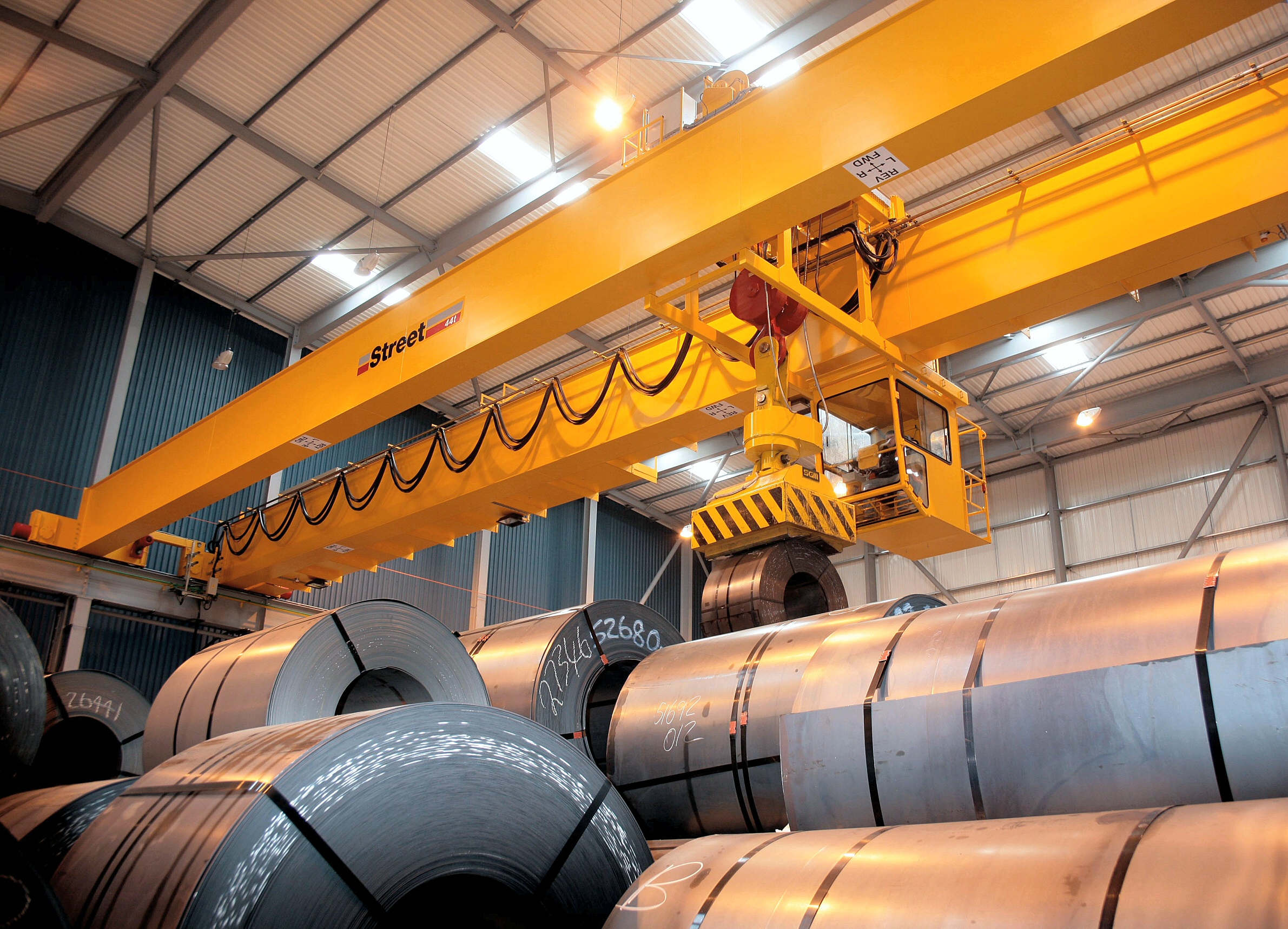

QC type electromagnetic bridge crane A6 heavy duty with cabin control for steel mills

Hook bridge crane is a general bridge crane which is widely used in the lifting machinery.Its lifting capacity is from 5tons to 450/80tons,and its working duty is A3~A8 according to the frequency of usage.It is suitable for loading, unloading and hoisting work in factories, warehouses and freight yards where the ambient temperature is -20℃～40℃ and the relative humidity is not more than 85%. It is forbidden to work in the environment of flammable, explosive and corrosive gas.

QC type electromagnetic bridge crane has the same basic structure with the QD type hook bridge crane . The difference is that the hook hanging a DC lifting electromagnetic suction cup, used to lift the magnetic conductivity of ferrous metals and their cargos. Through the cabin room installed in the silicon controlled DC box will be AC power conversion to DC power, and then through the special cable reel located on the trolley, the DC power with a cable to the electromagnetic suction cup.

The lifting capacity of the QC type electromagnetic bridge crane is from 5tons to 16tons(but can be customized according to your needs), its working duty is A6(heavy duty).Generally, it used in the places like steel mills; Any place where magnetic conductive objects need to be lifted.(Application)

Product configuration:

QC type Electromagnetic bridge crane is mainly composed of a box-shaped bridge,a trolley traveling mechanism, a crane traveling mechanism and an electrical control system. The lifting mechanism is a magnet.

Track is laid on the main beam for the trolley to move laterally along the direction of the main beam. The main girder is welded with the box-shaped end girder, and the end girder is arranged with joints, bolts or pin connections for the crane to be disassembled and transported.

The control method has three ways mainly: pendant line button control, wireless remote control and aerial cabin control, generally standard way is cabin control.

There are two types of cabin : open and closed, with adjustable seats, insulating pads on the bottom plate, and tempered glass for window glass. Air conditioners, sounders, walkie-talkies and other items can be configured according to users’ requirements.

Product specification:

Delivery & Package:

Photos for reference:

Company strength:

FAQ & Contact us:

Hi, firstly let us introduce our company as follows:

We, Henan Mine Crane Group, have 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of CNY1.18 Billion, have 430 branches around the world and serving over 6,000 Mid-high end customers.

We have more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, we could supply you all kinds of cranes, more than 110 types. In order to manufacture the best quality crane with high efficiency production, we have invested large number of high technique equipments(include more than 500sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment. Meanwhile, our factory have passed CE, EAC, SGS, and OHSAS & ISO9001:2000, ISO14001:1996 and ISO9001:2001, have the perfect quality-control system.

In 2020, we have sold 100,000 sets of crane and hoist, sales turnover valued CNY5.675 billion. We haave scored No. 1 on crane sale quantity for continuous 16 years in China local market. We have achieved the remarkable achievements in over 50 key industries such as aerospace, automobile and shipping, steel smelting, petrochemical, electronic information, electric power, water conservancy, railway and military industry. The developed intelligent storage crane, precise positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other high-end products serve Baosteel, China Railway, MCC, CNNC(China National Nuclear Corporation), CASC(China Aerospace Science and Technology Corporation), and other large enterprises; also include oversea project such as Vietnam Yishan Iron and Steel Group, Pakistan Abass Steel Group, Kenya Railway gantry crane projects(Mombasa to Nairobi), Pakistan subway construction bridge cranes project etc, more than 120 countries.

Our Gov have arranged our Group organized and hold many times of International Exhibition Of Crane in China because of our high good influence, meanwhile, our crane have been used on satellite launching because our high technique, and newspaper, local TV, CCTV interviewed and report us many times too.

Quality Forges the Brand, Integrity Waves a bright future. We are trying to win the world with integrity and high quality, We sincerely hope to cooperate with all friends from the world and create brilliance together.

Company Position: The company is the largest industrial crane manufacturer in China, with the highest sales volume and market share in China market.
