Lifting Cabin Control Double Girder Overhead Travelling Crane

product description:

1. It is a widely used lifting machinery, which is mainly composed of box bridge, lifting trolley, truck operating mechanism and electrical control system.

2. The fetching device is a hook.

3. Rails are laid on the main beam for the crane trolley to move laterally in the direction of the main beam.

4. The main beam is welded with the box end beam, and the joints and bolts are arranged in the middle of the end beam for the split transportation of the bridge frame.

5. The platform is used for placing the running mechanism and electrical equipment of carts and for maintenance.

6. There are three operating modes: ground controller, wireless remote control and driver's cab.

7. There are two types of driving cab: open and closed, with adjustable seats, soleplate laid with insulation cushion,toughened glass for window glass, fire extinguisher and electric fan. According to user's requirements, air conditioning, sounder, intercom and other items can be equipped.

8. The crane can be equipped with motor grab, electromagnetic sucker and other equipment to meet the needs of lifting various types of materials.

9. The working class of this crane is A3~A7, and the lifting weight in common use is 3~250t.

10. It is suitable for loading, unloading and hoisting in factories, warehouses and freight yards where the ambient temperature is between -10℃ and 40℃ and the relative humidity is not more than 85%. It is prohibited to work in the flammable, explosive and corrosive gas environment.

Technical Parameter(customizable):

Main Features:
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

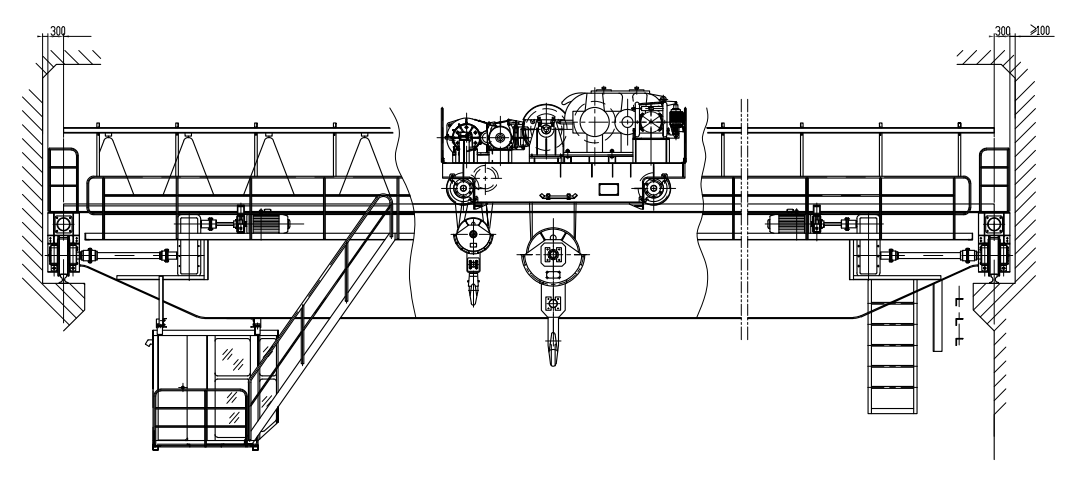

Detailed Images:

FAQ

A: Can you provide custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
