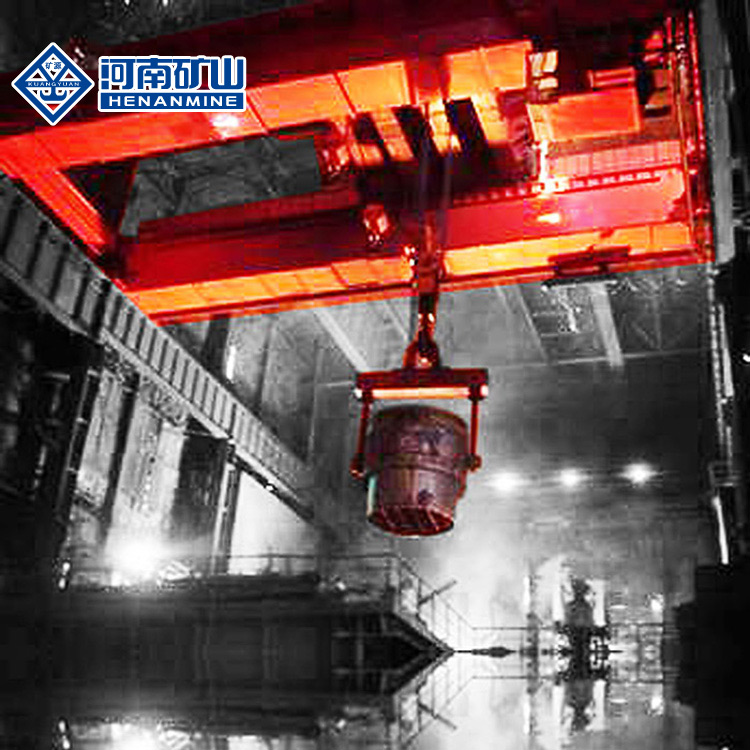

Electric Hoist Double Girder Overhead Crane With Spreader advanced
designed crane for the low headroom and high lifting height
demands. It has many advantages such as: Strong rigidity, light
dead weight, outstanding structure design, long working lift etc. It could save your factory
space and investment effectively.
High lifting capacity of this crane is designed with two hooks that
means two independent sets of hoisting mechanism. The main hook is
used to lift heavy objects while the auxiliary used to lift light
objects,the auxiliary can also be used for collaborative main hook
tilting or tipping the material. However, don’t use the two hooks
to lift at the same time when goods weight is over the auxiliary
rated capacity.
QD Double girder overhead crane is composed with Girder frame, Crane travel device, and the
trolley with lifting and moving device. There are Pave the rail for
the trolley move on the main girder.Assemble the moving table on the outside of the two main girder,
one side is prepare for the assemble and maintenance the crane move
device, another side is prepare for the assemble of the trolley
conductor device.
There are full field of view Cabin suspend under the main girder,
there are joint control desk or single control box packed within
the Cabin, assemble the sidelong ladder between the Cabin and
moving table, The main girder joint with the two side end carriage
which with the joint point in the middle.
Product Details
Main Parts of QD Moddel Crane
Product Structure
Working condition:
1. Working tempreture:-10~+60°C,
2. Work class:A6-A8,
3. Power Source:3ph,380V,50HZ or other under customer requirement.
Safety feature:
1. Weight overload protection device,
2. Top quality long time bearing polyurethane materials buffer,
3. Crane traveling limit switch, Voltage lower protection function,
4. Emergency stop system,
5. Current overload protection system and so on!
| Lifting weight | Primary handcart | T | 100 |
| Secondary handccart | 30 |
| Span | | 16 |
| Lifting height | Primary handcart | M | 18 |
| Secondary handccart | 19 |
| Working class | A6 |
| Speed | Lift | Primary handcart | m/min | 7.54 |
| Secondary handccart | 8.93 |
| Travel | Primary handcart | | 35.08 |
| Secondary handccart | 42.44 |
| Motor | Lift | Primary handcart | Type/kw | YZR355M-10/90×2 |
| Secondary handccart | YZR280M-10/55 |
| Travel | Primary handcart | YZR160L-8/9×2 |
| Secondary handccart | YZR160M1-6/6.3 |
| Cart | YZR225M-8/22×4 |
| Weight | Primary handcart | T | 66 |
| Secondary handcart | 10.25 |
| Cart | 173 |
| Max wheel pressure | KN | 520 |
| Steel track | | QU120 |
| Power supply | | 3-phase A.C. 50Hz 380V |
Design and Development:
We strongly believe in Design and Development for the improvement
of the products to save power and money. We have a wonderful team
for Quality Assurance and set to achieve higher goals and conquer
new horizons.
Ralited details
Main Product
Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal,
goods scattered, petrochemical, aerospace, military and other
industries of universal bridge crane, overhead crane price 20 ton
5ton, eot crane, door crane, universal gantry crane, rubber tyre
and rail mounted container gantry crane, four link type portal
crane, quayside container crane, crane, crane hook, mining grab
crane, gantry crane, ship loader, grab bucket ship unloader,
stacker reclaimer, dredger, mobile platforms and other types of
hydraulic crane.
CATEGORY
M
Company Informatioin
Certification
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality
control, ISO14001:1996 environmentand ISO9001:2001 health and safety
certifications. We have a perfect quality-control system, a strict management
system, and strong production capability and advanced testing measures to ensure the high production and high
quality.
