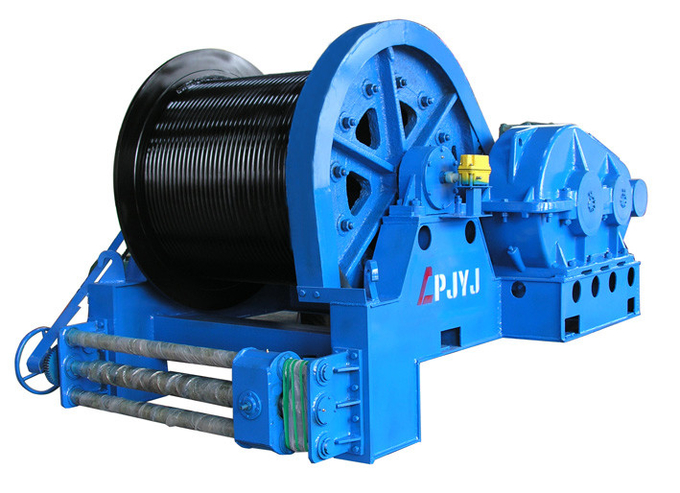

    5t Electric Slow Speed Wire Rope Winch JM Type 50 KN 11kw

    Ask Lasest Price
    Brand Name : KuangYuan
    Model Number : Winch
    Certification : CE ISO GOST
    Price : USD 1500-5000
    Payment Terms : L/C, T/T
    Supply Ability : 30000 sets per year
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    5t Electric Slow Speed Wire Rope Winch JM Type 50 KN 11kw

    Slow Speed Electric Wire Rope Winch Machine With Lifting Weight 5T


    1. Product Description

    There are three types of electric winches commonly used in construction sites: fast, medium and slow. The slow speed winch (JJM) is mainly used for structural installation, cold drawing of steel bars and tensioning of prestressed tendons.

    The hoist can only be used on the ground. It is powered by an electric motor, driven by an elastic coupling, a three-stage closed gear reducer, and a toothed coupling, and adopts electromagnetic braking. The product has high versatility, compact structure, small size, light weight, heavy lifting, and easy transfer. Ancillary equipment for automatic operation lines.

    Working principle: A device that drives the drum by human or mechanical power and winds the rope to complete the traction work. Simple hoisting equipment for lifting heavy objects vertically, horizontally or tilting. Divided into manual and electric, mainly electric.


    2. Product Specification


    KY brand winchWINCH TECHNIQUE PARAMETER
    Rated load (KN)Rated speed (m/min)Rope capacity (m)Rope Diameter (mm)Motor typeMotor power (KN)Weight(Kg)Type
    JM MODEL SLOW SPEED ELECTRONIC CONTROL WINCHJK11015809Y112M-62.2270/
    JK1.6161611512.5Y132S-65.5500/
    JK2201610012.5Y160M-67.5550/
    KK3.2329.515015.5Y160M-67.5700/
    JK5509.524021.5YZR160L-6111100/
    JK6609.520024YZR180L-6151300/
    JK880825026YZR180L-5152000/
    JK10100820030YZR200L-6222000/

    3. Precautions
    1. The wire ropes on the reel should be arranged neatly. If overlapping and oblique winding are found, they should be stopped and rearranged. It is strictly forbidden to pull and step on the wire rope with your hands and feet during rotation. The wire rope is not allowed to be fully released, and should be kept at least three circles.
    2. The steel wire rope is not allowed to be knotted or twisted. When the broken wire exceeds 10% within a pitch, it should be replaced.
    3. During the operation, no one shall cross the wire rope, and after the object (object) is lifted, the operator shall not leave the winch. Objects or cages should be lowered to the ground during breaks.
    4. During the operation, the driver and signalman should maintain good visibility with the lifting objects. The driver and the signalman should cooperate closely and obey the unified command of the signal.
    5. In case of power failure during operation, the power supply should be cut off and the lifting object should be lowered to the ground.
    6. Listen to the commander's signal at work, the signal is unclear or may cause an accident

    4. Related Products

    5t Electric Slow Speed Wire Rope Winch JM Type 50 KN 11kw


    5. Packing


    6. FAQ:


    1). How many operating methods for my selection?

    Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons

    2). Can this type work in hazardous environment?

    Sure! We can customize for you, acid proof or explosion proof, no problem for that.

    3). Can you provide the serious lifting tools?

    Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

    4). How can we install the winch?

    Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

    5). Safety device

    Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
